AVM COMPUTERSYSTEME
FRITZ!X PC
| Card Type | ISDN |
| NIC Type | Euro-ISDN |
| Maximum Onboard Memory | Unidentified |
| Boot ROM | Not available |
| Network Transfer Rate | Unidentified |
| Topology | Star |
| Wiring Type | Unshielded
twisted pair V.24 via DB-9 port |
| Data Bus | External |

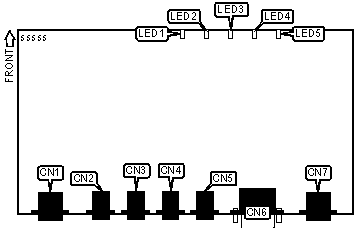

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Power connector (RJ-45) | CN1 |
RJ-12 analog connector | CN5 |
| RJ-12 analog connector | CN2 |
V.24 DB-9 connector | CN6 |
| RJ-12 analog connector | CN3 |
RJ-45 ISDN connector | CN7 |
| RJ-12 analog connector | CN4 |
||
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green |
On |
Power is on |
LED1 |
Green |
Off |
Power is off |
LED2 |
Orange |
Blinking |
Extension 1 is ringing |
LED2 |
Orange |
On |
Device on extension 1 is active |
LED2 |
Orange |
Off |
Extension 1 is inactive |
LED3 |
Orange |
Blinking |
Extension 2 is ringing |
LED3 |
Orange |
On |
Device on extension 2 is active |
LED3 |
Orange |
Off |
Extension 2 is inactive |
LED4 |
Orange |
Blinking |
Extension 3 is ringing |
LED4 |
Orange |
On |
Device on extension 3 is active |
LED4 |
Orange |
Off |
Extension 3 is inactive |
LED5 |
Orange |
Blinking |
Extension 4 is ringing |
LED5 |
Orange |
On |
Device on extension 4 is active |
LED5 |
Orange |
Off |
Extension 4 is inactive |
