WS-3314JS7
| Card Type | Modem |
| Chip Set | Unidentified |
| I/O Options | Line out, line in, speaker out, microphone in |
| Maximum Modem Rate | 33.6Kbps |
| Maximum Fax Rate | 14.4Kbps |
| Data Modulation Protocol | Bell 103/212 ITU-T V.22, V.22bis, V.32, V.32bis, V.34 |
| Fax Modulation Protocol | ITU-T V.17, V.21 CH.2, V.27ter, V.29 |
| Error Correction/Compression | MNP5, V.42, V.42bis |
| Fax Class | Class I |
| Data Bus | 8-bit ISA |

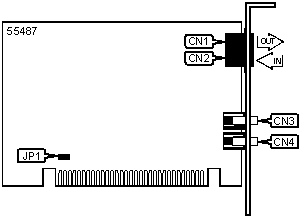

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Line out (RJ-11) | CN1 |
Microphone in | CN3 |
| Line in (RJ-11) | CN2 |
Speaker out | CN4 |
PLUG & PLAY |
||
Setting |
JP1 |
|
| » | Plug & play enabled |
Closed |
Plug & play disabled |
Open |
|
SUPPORTED COMMAND SET |
Basic AT Commands |
| AT, ‘+++’, A/ |
| A, B, E, H, L, M, O, P, Q, T, V, X, Y, Z |
| &C, &F, &G, &L, &V, &W, &Y, &Z |
Extended AT Commands |
| %A, %C, %E, %L, %Q |
| \A, \B, \K, \N, \V, \X |
S Registers |
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S25, S26, S30 |
| Note: See MHI Help File for full command documentation. |
PROPRIETARY AT COMMAND SET
AUTO-MODE DETECTION |
|
| Type: | Configuration |
| Format: | AT [cmds] Nn [cmds] |
| Description: | Selects various options for the automatic detection and negotiation of protocols during the handshake process if the modem is communicating with a remote modem of dissimilar speed. |
Command |
Function |
N0 |
Auto-mode disabled |
» N1 |
Auto-mode enabled |
COMMUNICATIONS MODE |
|
| Type: | Configuration |
| Format: | AT [cmds] &Mn [cmds] |
| Description: | Selects communications mode |
Command |
Mode |
&M0 |
Direct mode |
» &M5 |
Auto-reliable mode |
DATA SET READY (DSR) |
|
| Type: | Configuration |
| Format: | AT [cmds] &Sn [cmds] |
| Description: | Selects DSR options |
Command |
Function |
» &S0 |
DSR forced high |
&S1 |
DSR high only while modem is handshaking or connected |
DATA TERMINAL READY (DTR) |
|
| Type: | Configuration |
| Format: | AT [cmds] &Dn [cmds] |
| Description: | Selects modem response to DTR |
Command |
Mode |
&D0 |
DTR ignored |
&D1 |
DTR toggle causes online command mode |
» &D2 |
DTR toggle causes modem to go on-hook |
&D3 |
Modem reset on DTR toggle |
DIAL |
|
| Type: | Immediate |
| Format: | AT [cmds] D<#> [cmds] |
| Description: | Dials telephone number according to any modifiers included in the string |
| Note: | Any combination of modifiers can be used to produce the desired dial functions in sequence. |
Command |
Function |
DP |
Pulse dialing enabled |
DS=n |
Dial stored telephone number n (0-3) |
DT |
Tone dialing enabled/Pulse dialing disabled |
DW |
Dialing resumed following dial tone detection |
D, |
Dialing paused for amount of time specified in S8 register |
D! |
Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook. |
D^ |
1300Hz data calling tone enabled |
D; |
Modem returned to idle state after dialing. The semicolon can only be placed at the end of the dial command. |
EXTENDED RESULT CODES |
|
| Type: | Configuration |
| Format: | AT [cmds] Wn [cmds] |
| Description: | Enables selection of additional result codes when S95=0; otherwise, S95 takes precedence. |
Command |
Function |
» W1 |
Enables CONNECT result codes to report DCE speed. |
W2 |
Enables CONNECT result codes to report DTE speed. |
FLOW CONTROL |
|
| Type: | Configuration |
| Format: | AT [cmds] &Kn [cmds] |
| Description: | Enables flow control options |
Command |
Function |
&K0 |
Flow control disabled |
» &K3 |
RTS/CTS flow control enabled |
&K4 |
XON/XOFF flow control enabled |
&K5 |
Transparent XON/XOFF flow control enabled |
PULSE DIALING RATIO |
|
| Type: | Configuration |
| Format: | AT [cmds] &Pn [cmds] |
| Description: | Selects pulse dial make/break ratio |
Command |
Function |
» &P0 |
39/61ms at 10pps (North America) |
&P1 |
33/67ms at 10pps (Europe) |
REPORT INFORMATION |
|
| Type: | Immediate |
| Format: | AT [cmds] In [cmds] |
| Description: | Displays information requested |
Command |
Function |
I0 |
Reports product code |
I1 |
Reports factory settings |
I2 |
Tests and reports ROM checksum |
I3 |
Reports firmware ID 1 |
I4 |
Reports firmware ID 2 |
RTS/CTS |
|
| Type: | Configuration |
| Format: | AT [cmds] &Rn [cmds] |
| Description: | Selects RTS/CTS options |
Command |
Function |
&R0 |
CTS follows RTS in data mode; RTS is ignored in command mode. |
&R1 |
CTS follows CD |
» &R2 |
CTS forced high, RTS is ignored. |
TEST MODES |
|
| Type: | Immediate |
| Format: | AT [cmds] &Tn |
| Description: | Selects test options |
Command |
Function |
&T0 |
End current test |
&T1 |
Begin local analog loopback test |
V.34 MODE |
|
| Type: | Configuration |
| Format: | AT [cmds] Un [cmds] |
| Description: | Enable/disables V.34 mode |
Command |
Function |
U0 |
V.34 mode disabled |
» U1 |
V.34 mode enabled |
EXTENDED AT COMMAND SET
COMPRESSION |
|
| Type: | Configuration |
| Format: | AT [cmds] %Cn [cmds] |
| Description: | Selects data compression |
Command |
Function |
%C0 |
Data compression disabled |
» %C1 |
Data compression enabled |
FLOW CONTROL TYPE |
|
| Type: | Configuration |
| Format: | AT [cmds] \Qn [cmds] |
| Description: | Sets type of flow control used by modem |
Command |
Function |
\Q0 |
Flow control disabled |
\Q1 |
Bi-directional XON/XOFF flow control enabled |
\Q2 |
CTS flow control by DCE enabled |
» \Q3 |
Bi-directional RTS/CTS flow control enabled |
INACTIVITY TIMER |
|
| Type: | Configuration |
| Format: | AT [cmds] \Tn [cmds] |
| Range: | 0-90 |
| Unit: | 1 second |
| Description: | Sets the length of time that the modem does not receive information before it disconnects. |
SPECIAL COMMANDS
ADAPTIVE PROTOC0L HANDSHAKE |
|
| Type: | Configuration |
| Format: | AT [cmds] *Gn [cmds] |
| Description: | Enables/disables adaptive protocol handshake |
Command |
Function |
*G0 |
Adaptive protocol handshake disabled |
» *G1 |
Adaptive protocol handshake enabled |
AUTO-RETRAIN |
|
| Type: | Configuration |
| Format: | AT [cmds] *Qn [cmds] |
| Description: | Enables/disables auto-retrain |
Command |
Function |
*Q0 |
Auto-retrain disabled |
» *Q1 |
Auto-retrain enabled |
DCE LINE SPEED |
|
| Type: | Configuration |
| Format | AT [cmds] *Nn [cmds] |
| Description: | Sets the maximum allowable data exchange rate attempted during handshake process. |
Command |
Function |
*N0 |
1200bps |
*N1 |
2400bps |
*N2 |
4800bps |
*N3 |
7200bps |
*N4 |
9600bps |
*N5 |
12.0Kbps |
*N6 |
14.4Kbps |
*N7 |
16.8Kbps |
*N8 |
19.2Kbps |
*N9 |
21.6Kbps |
*N10 |
24.0Kbps |
*N11 |
26.4Kbps |
*N12 |
28.8Kbps |
*N13 |
31.2Kbps |
» *N14 |
33.6Kbps |
*N15 |
1200/75bps |
*N16 |
V.21 at 300bps |
*N17 |
Bell 103 at 300bps |
TRELLIS CODING |
|
| Type: | Configuration |
| Format: | AT [cmds] *Tn [cmds] |
| Description: | Enables/disables trellis coding |
Command |
Function |
*T0 |
V.32 trellis coding disabled |
» *T1 |
V.32 trellis coding enabled |
USER ABORT FEATURE |
|
| Type: | Configuration |
| Format: | AT [cmds] *Pn [cmds] |
| Description: | Enables/disables user abort feature |
Command |
Function |
» *P0 |
User abort feature enabled |
*P1 |
User abort feature disabled |
