EICON TECHNOLOGY CORPORTATION
EICONCARD S91-U
| Card Type | Digital I/O card, ISDN Modem |
| Maximum Onboard Memory | 1MB |
| Wiring Type | Unshielded twisted pair |
| Maximum Modem Rate | 128Kbps |
| Data Modulation Protocol | V.24, V.35, EIA-530, V.36/RS-449, X.21 |
| Data Bus | 32-bit PCI |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |

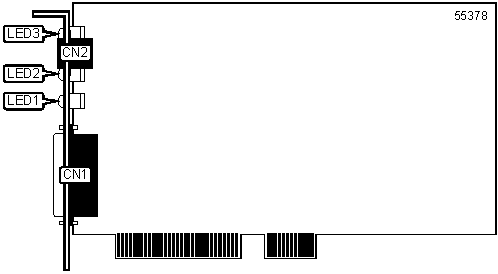

| VHSI port | CN1 |
RJ-45 connector | CN2 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
On |
Card is being configured |
LED2 |
Unidentified |
On |
Channel B connection is good |
LED2 |
Unidentified |
Blinking |
Channel B is attempting to connect to remote device |
LED2 |
Unidentified |
Off |
Channel B connection is broken |
LED3 |
Unidentified |
On |
Channel D connection is good |
LED3 |
Unidentified |
Blinking |
Channel D connection is active, but no link exists |
LED3 |
Unidentified |
Off |
Channel D connection is broken |
| Note: Network software will control LED1 function after card configuration. | |||
