MULTI-TECH SYSTEMS, INC.

ISIHI-2S

Card Type Modem, ISDN TA
Chip Set Unidentified
I/O Options ISDN interface via R-J45
Maximum Modem Rate 56Kbps
Maximum Fax Rate 14.4Kbps
Maximum ISDN Rate 460.0Kbps
Data Modulation Protocol Bell 103A/212
ITU-T V.21, V.21CH2, V.27ter, V.29, T.30, T.4
Fax Modulation Protocol ITU-T V.17, V.21CH2, V.27ter,
ISDN Modulation Protocol V.120, PPP, X.25
Error Correction/Compression MNP10,MNP5, V.42, V.42bis
Fax Class Class I & II
Data Bus 16-bit ISA

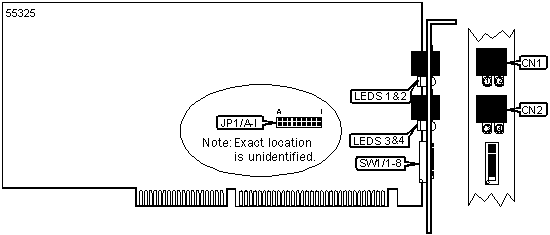

CONNECTIONS

Function

Label

Function

Label

ISDN B1 interface (RJ-45)

CN1

ISDN B2 interface (RJ-45)

CN2


INTERRUPT SELECTION

IRQ

JP1/A

JP1/B

JP1/C

JP1/D

JP1/E

JP1/F

JP1/G

JP1/H

JP1/I



2/9

Closed

Open

Open

Open

Open

Open

Open

Open

Open



3

Open

Closed

Open

Open

Open

Open

Open

Open

Open



4

Open

Open

Closed

Open

Open

Open

Open

Open

Open



5

Open

Open

Open

Closed

Open

Open

Open

Open

Open



7

Open

Open

Open

Open

Closed

Open

Open

Open

Open

»

0

Open

Open

Open

Open

Open

Closed

Open

Open

Open



11

Open

Open

Open

Open

Open

Open

Closed

Open

Open



12

Open

Open

Open

Open

Open

Open

Open

Closed

Open



15

Open

Open

Open

Open

Open

Open

Open

Open

Closed


BASE I/O ADDRESS SELECTION

Setting

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

SW1/7

SW1/8

000h

Off

Off

Off

Off

Off

Off

Off

Off

008h

On

Off

Off

Off

Off

Off

Off

Off

010h

Off

On

Off

Off

Off

Off

Off

Off

018h

On

On

Off

Off

Off

Off

Off

Off

020h

Off

Off

On

Off

Off

Off

Off

Off

210h

Off

On

Off

Off

Off

Off

On

Off

7D8h

On

On

Off

On

On

On

On

On

7E0h

Off

Off

On

On

On

On

On

On

7E8h

On

Off

On

On

On

On

On

On

7F0h

Off

On

On

On

On

On

On

On

7F8h

On

On

On

On

On

On

On

On

Note:

A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: SW1/8=32768, SW1/7=16384, SW1/6=8192, SW1/5=4096, SW1/4=2048, SW1/3=1024, SW1/2=512, SW1/1=256. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=1, On=0)


DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Both DTR

LED1

Green

Off

DTR

LED2

Green

On

Connection

LED2

Green

Off

Connection

LED3

Green

On

Both DTR

LED3

Green

Off

DTR

LED4

Green

On

Connection

LED4

Green

Off

Connection


SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘+++’, A/
A, E, H, Q, Y
&C, &F, &G, &V

Extended AT

\J, \K, \T, \X
%A, %E, %L, %Q, %TT

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S10, S11

Special Commands
-C
Note: See MHI Help File for full



PROPRIETARY AT COMMAND SET

AUTO-MODE DETECTION

Type: Configuration
Format: AT [cmds] N n [cmds]
Description: Selects various options for the

Command

Function



N0

In originate mode, handshake

»

N1

 In originate mode, handshake


COMMUNICATION PROTOCOLS

Type: Configuration
Format: AT [cmds] B n [cmds]
Description: Selects the communication

Command

Protocol

B0

Modem will use ITU-T V.22 at

B1

Modem will use Bell 212A at

B15

Modem will use ITU-T V.21 at

B16

Modem will use Bell 103J at


COMMUNICATIONS MODE

Type: Configuration
Format: AT [cmds] &Q n [cmds]
Description: Selects communications mode

Command

Mode



&Q0

Asynchronous mode, serial port

»

&Q5

 Error correction mode


&Q6

Buffered asynchronous mode


DATA SET READY (DSR)

Type: Configuration
Format: AT [cmds] &S n [cmds]
Description: Selects DSR options

Command

Function

»

&S0

 DSR forced high


&S1

DSR high only while modem is


DATA TERMINAL READY (DTR)

Type: Configuration
Format: AT [cmds] &D n [cmds]
Description: Selects modem response to DTR

Command

Function



&D0

DTR ignored


&D1

DTR drop causes online command

»

&D2

 DTR drop causes modem to go


&D3

Resets on low DTR


DIAL

Type: Immediate
Format: AT [cmds] D<#> [cmds]
Description: Dials telephone number according
Note: Any combination of modifiers can

Command

Function

DL

Re-dial last number

DP

Pulse dialing enabled

DS=n

Dial stored telephone number n

DT

Tone dialing enabled/Pulse

DW

Dialing resumed following dial

D,

Dialing paused for amount of time

D!

Flash function initiated. Modem

D@

Wait for Quite Answer function

D;

Modem returned to idle state

D^

Data calling tone disabled

D$

Wait for credit card


ECHOPLEX VALIDITY

Type: Configuration
Format: AT [cmds] F n [cmds]
Description: Command non-functional. For


FLOW CONTROL

Type: Configuration
Format: AT [cmds] &K n [cmds]
Description: Enables flow control options

Command

Function

&K0

Flow control disabled

&K3

RTS/CTS flow control enabled

&K4

XON/XOFF flow control enabled


ON-LINE

Type: Immediate
Format: AT [cmds] O n [cmds]
Description: Controls on-line command (data
Note: The O command must be placed at the end of the command string.

Command

Function

O0

On-line command mode with no

O1

On-line command mode with

O3

On-line command mode with rate


REPORT INFORMATION

Type: Immediate
Format: AT [cmds] I n [cmds]
Description: Displays information requested

Command

Function

I0

Reports firmware version and

I3

Reports firmware version and


RESTORE PROFILE ON POWER-UP

Type: Configuration
Format: AT [cmds] &Y n [cmds]
Description: Restores a selected profile into

Command

Function

&Y0

Restore profile 0 on power-up


RESULT CODE FORMAT

Type: Configuration
Format: AT [cmds] V n [cmds]
Description: Selects word or numeric format
Note: V2 command must be entered after

Command

Function

V0

Numeric format enabled

V1

Verbose (word) format enabled

V2

Displays CONNECT message of both


SELECT CALL PROGRESS RESULT CODES

Type: Configuration
Format: AT [cmds] X n [cmds]
Description: Enables selection of tone

Command

Function



X0

Busy and dial tone detection


X1

Busy and dial tone detection


X2

Busy tone detection disabled,


X3

Busy tone detection enabled, dial
»

X4

 Busy and dial tone detection


X5

Busy and dial tone detection


X6

Busy and dial tone detection


X7

Busy and dial tone detection


SOFT RESET

Type: Immediate
Format: AT [cmds] Z n [cmds]
Description: Restores modem profiles

Command

Function

Z0

Restore setting

Z1

Restore setting


STORE ACTIVE PROFILE

Type: Configuration
Format: AT [cmds] &W n [cmds]
Description: Writes the values for the active

Command

Function

&W0

Write the active profile to


STORE TELEPHONE NUMBER

Type: Configuration
Format: AT [cmds] &Z n =(phone #
Description: Writes selected telephone numbers n
Note: The characters described in the D command are valid for use in the &Z command; telephone number and modifiers can include up to 36 characters.

Command

Function

&Z0

Telephone number stored in memory

&Z1

Telephone number stored in memory

&Z2

Telephone number stored in memory

&Z3

Telephone number stored in memory


TRANSMIT CARRIER

Type: Configuration
Format: AT [cmds] C n [cmds]
Description: Command non-functional. For


V.32 - AUTO-RETRAIN

Type: Configuration
Format: AT [cmds] &B n [cmds]
Description: Command non-functional. For


EXTENDED AT COMMAND SET

CONNECT MODE

Type: Configuration
Format: AT [cmds] \N n [cmds]
Description: Controls the type of connection

Command

Function



\N0

Normal mode enabled


\N1

Direct mode enabled


\N2

MNP reliable mode enabled
»

\N3

 Auto-reliable mode enabled


\N4

V.42 reliable mode enabled


\N5

Auto-reliable mode enabled


\N7

Auto-reliable mode enabled


COMPRESSION

Type: Configuration
Format: AT [cmds] %C n [cmds]
Description: Selects data compression

Command

Function

%C0

Data compression disabled

%C1

MNP5 enabled


FLOW CONTROL TYPE

Type: Configuration
Format: AT [cmds] \Q n [cmds]
Description: Sets type of flow control used by

Command

Function

\Q0

Flow control disabled

\Q1

Bi-directional XON/XOFF flow

\Q3

Bi-directional RTS/CTS flow


S(STATUS) -REGISTERS

V.34 MODULATION

Type: Register
Format AT [cmds] S28= n [cmds]
Range: 0-255
Unit: Unidentified
Description: Enables/disables V.34 modulation.


DATA CALLING TONE

Type: Register
Format AT [cmds] S35= n [cmds]
Range: 0-1
Unit: Unidentified
Description: Enables/disables V.25 data


DCE LINE SPEED

Type: Register
Format AT [cmds] S37= n [cmds]
Description: Sets the maximum allowable data

Command

Function

S37=0

Speed of last connection

S37=1

Reserved

S37=2

1200/75bps

S37=3

300bps

S37=4

Reserved

S37=5

1200bps

S37=6

2400bps

S37=7

4800bps

S37=8

7200bps

S37=9

9600bps

S37=10

12.0Kbps

S37=11

14.4Kbps

S37=12

16.8Kbps

S37=13

19.2Kbps

S37=14

21.6Kbps

S37=15

2400bps

S37=16

26.4Kbps

S37=17

28.8Kbps

S37=18

31.2Kbps

S37=19

33.6Kbps


56K AUTO RATE

Type: Register
Format AT [cmds] S42= n [cmds]
Range: 0-1
Unit: Unidentified
Description: Enables/disables 56Kbps auto


V.32BIS START-UP AUTO MODE

Type: Register
Format AT [cmds] S43= n [cmds]
Range: 0-1
Unit: Unidentified
Description: Enables/disables V.32bis start-up
Note: For testing and debugging


INACTIVITY TIMER

Type: Register
Format: AT [cmds] S89= n [cmds]
Range: 0-255
Unit: 1 second
Description: Sets the length of time that the


LINE CODING

Type: Register
Format: AT [cmds] S108= n [cmds]
Description: Selects line coding used by modem

Command

Function

S108=0

m -law encoding enabled
  A -law encoding enabled


PCM MODE CONTROL

Type: Register
Format: AT [cmds] S109= n
Description: Controls PCM mode
Command Function
S109 = 0 K56flex support only
S109 = 1 V.90 & K56flex
S109 = 2 V.90 support only


ISDN TA COMMAND SET

ANSWER

Type: Immediate
Format: AT [cmds] A
Description: Enables answer mode, the TA goes


ATTENTION

Type: Immediate
Format: AT [ cmds ]
Description: Tells the modem that a command


CONFIGURATION

Type: Configuration
Format AT [cmds] @CONFIG [cmds]
Description: Starts the internal configuration


CONFIGURATION PROFILES

Type: Immediate
Format: AT [cmds] &V [cmds]
Description: Displays configuration profiles

Command

Function

&V0

Displays port 0 configuration

&V1

Displays port 1 configuration

&V2

Displays both 0 & 1 port


DATA DIRECTORY NUMBER

Type: Configuration
Format: AT [cmds] !N1= n [cmds]
Range: 0 - 24
Unit: 0 - 9, *, #
Description: Sets the directory number (DN)


DATA SET READY (DSR)

Type: Configuration
Format: AT [cmds] &S n [cmds]
Description: Selects DSR options

Command

Function

&S0

DSR forced high

&S1

DSR high only while TA is

&S2

DSR high only while TA is


DATA SPID

Type: Configuration
Format: AT [cmds] !C6= n [cmds]
Range: 0 - 20
Unit: ASCII
Description: Specifies the data service


DATA TEI

Type: Configuration
Format: AT [cmds] !D3= n [cmds]
Range: 0 - 63, 240, 241
Unit: ASCII
Description: Sets the terminal endpoint


DATA TERMINAL READY (DTR)

Type: Configuration
Format: AT [cmds] &D n [cmds]
Description: Selects TA response to DTR

Command

Function

&D0

DTR ignored

&D1

DTR drop causes online command

&D3

Resets on low DTR


DIAL

Type: Immediate
Format: AT [cmds] D<#> [cmds]
Description: Dials telephone number according
Note: Any combination of modifiers can

Command

Function

DSn

Dial stored telephone number n (0-9)


DIAL MODE

Type: Configuration
Format: AT [cmds] %A97= x [cmds]
Description: Selects what type of dialing the

Command

Function

%A97=0

 Enbloc dialing enabled.

%A97=1

Overlap dialing enabled.


DISPLAY NETWORK CONFIGURATION

Type: Immediate
Format: AT [cmds] !L [cmds]
Description: Displays the current DN, SPID,


ECHO

Type: Configuration
Format: AT [cmds] E n [cmds]
Description: Enables TA to echo commands

Command

Function

E0

Echo function disabled

E1

Echo function enabled


EMBEDDED PROTOCOL ANALYZER

Type: Configuration
Format: AT [cmds] >D n [cmds]
Description: Analyzes various protocols

Command

Function

>D0

Display B-channel traffic,

>D1

Display D-channel traffic,

>D2

Display D-channel traffic,

>D3

Display D-channel traffic,

>D5

Display async PPP data

>D6

Display sync PPP data

>D98

Embedded protocol analyzer

>D99

Embedded protocol analyzer


ESCAPE SEQUENCE - HAYES (PATENT ‘302)

Type: Immediate
Format: +++<WAIT>
Description: Initiates the escape sequence and
Note: Do not precede this command


ESCAPE SEQUENCE OPTIONS

Type: Configuration
Format: AT [cmds] %E n [cmds]
Description: Controls escape sequence options
Note: %E1 or %E3 may be entered in

Command

Function

%E0

Escape disabled

%E1

+++ escape option enabled

%E2

<BREAK> escape option

%E3

+++ and <BREAK> escape

%E4

OK response to +++ disabled

%E5

OK response to +++ enabled


FACTORY DEFAULT PROFILE

Type: Configuration
Format: AT [cmds] &F [cmds]
Description: Sets values in active profile to

Command

Function

»

&F0

 Loads profile 0 - async operation


&F1

 Loads profile 1 - V.120 operation


&F3

 Loads profile 3 - ML-PPP async


FLOW CONTROL

Type: Configuration
Format: AT [cmds] &E n [cmds]
Description: Enables flow control options

Command

Function

&E3

Flow control disabled

&E4

RTS to CTS flow control enabled

&E5

XON/XOFF flow control enabled -

&E6

XON/XOFF pacing enabled - signals

&E7

XON/XOFF pacing enabled - signals

&E12

Pacing enabled

&E13

Pacing disabled


HOOK CONTROL

Type: Immediate
Format: AT [cmds] H n [cmds]
Description: Selects whether the TA is on-hook

Command

Function

H0

TA commanded to go on-hook

H1

TA commanded to go off-hook


ON-LINE

Type: Immediate
Format: AT [cmds] O n [cmds]
Description: Controls on-line command (data
Note: The O command must be

Command

Function

O0

On-line command mode with no


PERSISTANT DTR DIALING

Type: Configuration
Format: AT [cmds] $D n [cmds]
Description: Enables/disables persistent DTR

Command

Function

» $D0 PDD disabled


$D1

 PDD enabled


POWER UP DATA BITS

Type: Configuration
Format AT [cmds] @P4= n [cmds]
Description: Sets the data bits at power up

Command

Function

@P4=7

7 bits

@P4=8

8 bits


POWER UP PARITY

Type: Configuration
Format AT [cmds] @P3= n [cmds]
Description: Sets the parity at power up

Command

Function

@P3=0

Odd parity enabled

@P3=1

Even parity enabled

@P3=2

Mark parity enabled

@P3=3

Space parity enabled

@P3=4

Parity disabled


POWER UP STOP BITS

Type: Configuration
Format AT [cmds] @P6= n [cmds]
Description: Sets the data bits at power up

Command

Function

@P6=1

1 stop bit

@P6=2

2 stop bits


RATE ADAPTION PROTOCOL

Type: Configuration
Format: AT [cmds] !Z= n [cmds]
Description: Select rate adaption protocol

Command

Function

!Z=5

V.120

!Z=9

PPP


REPORT INFORMATION

Type: Immediate
Format: AT [cmds] I n [cmds]
Description: Displays information requested

Command

Function

I0

Reports product ID

I1

Reports firmware version number

I2

Reports model number


RESULT CODE FORMAT

Type: Configuration
Format: AT [cmds] V n [cmds]
Description: Selects word or numeric format

Command

Function

V0

Numeric format enabled

V1

Verbose (word) format enabled


RESULT CODES

Type: Configuration
Format: AT [cmds] Q n [cmds]
Description: Enables TA to send result codes

Command

Function

Q0

Result code sending enabled

Q1

Result code sending disabled


RTS/CTS

Type: Configuration
Format: AT [cmds] &R n [cmds]
Description: Selects RTS/CTS options

Command

Function

&R0

CTS follows RTS in data mode; RTS

&R1

CTS forced high, RTS is ignored.

&R2

CTS forced high, drops on


SELECT CALL PROGRESS RESULT CODES

Type: Configuration
Format: AT [cmds] X n [cmds]
Description: Enables selection of tone

Command

Function

X0

Busy and dial tone detection

X1

Busy and dial tone detection

X2

All messages enabled; result


SINGLE/MULTIPLE XOFF CHARACTERS

Type: Configuration
Format: AT [cmds] #X n [cmds]
Description: Allows the TA to send either

Command

Function

» #X0 One XOFF character is sent untill


#X1

Multiple XOFF characters are sent


STATUS/PROFILE

Type: Immediate
Format: AT [cmds] L n [cmds]
Description: Displays operating parameters of

Command

Function

L5

Displays AT command parameters

L6

Displays values currently stored

L8

Displays low level ISDN status


STORE ACTIVE PROFILE

Type: Configuration
Format: AT [cmds] &W n [cmds]
Description: Writes the values for the active

Command

Function

&W0

Write the active profile to

&W1

Erases settings next time TA is


STORE TELEPHONE NUMBER

Type: Configuration
Format: AT [cmds] &Z n =(phone #
Description: Writes selected telephone numbers n


SWITCH TYPE

Type: Configuration
Format: AT [cmds] !C0= n
Description: Selects what type of
Command

Function

  !C0=0 TA is connected to 5ESS switch.
  !C0=1 TA is connected to DMS-100
  !C0=2 TA is connected to NET3 switch
» !C0=3 TA is connected to NI-1 switch.


VOICE DIRECTORY NUMBER

Type: Configuration
Format: AT [cmds] *!N1= n [cmds]
Range: 0 - 24
Unit: 0 - 9, *, #
Description: Sets the directory number (DN)


VOICE SPID

Type: Configuration
Format: AT [cmds] *!C6= n [cmds]
Range: 0 - 20
Unit: ASCII
Description: Specifies the voice service
