PATTON ELECTRONICS COMPANY
222N9
| Card Type | Interface Converter |
| Chip Set | Unidentified |
| I/O Options | 9-pin serial port, network interface via RJ-45, RJ-11 or terminal block |
| Wiring Type | Unshielded twisted pair |
| Maximum Data Rate | 19.2Kbps |
| Data Bus | External |

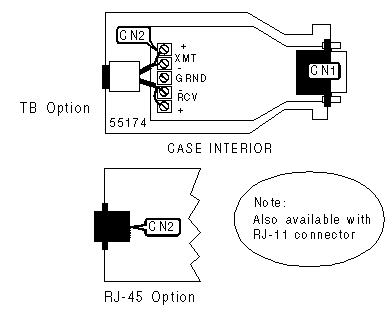

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 9-pin serial port | CN1 |
UTP interface | CN2 |
| Note: Both male and female terminal block configurations are available | |||
