AVM COMPUTERSYSTEME
ISDN-CONTROLLER B1 (V3.0)
| Card Type | ISDN |
| Chip Set | Unidentified |
| I/O Options | ISDN interface (RJ-45) |
| ISDN Data Rate | 64Kbps x 2 |
| D-Channel Protocol | DSS1, 1TR6, VN3/4, 5ESS, NI1, DMS-100, Austel, CT1 |
| B-Channel Protocol (Layer 2) | X.75, HDLC, Transparent, V.110, V.120, V.29 |
| B-Channel Protocol (Layer 3) | Transparent, X.25, ISO 8208, T.70, T90, T30 |
| Error Correction/Compression | Unidentified |
| Data Bus | 16-bit ISA |
CONNECTIONS |
|
Function |
Label |
| ISDN interface (RJ-45 connector) | CN1 |

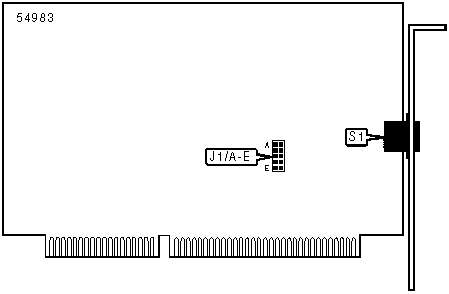

BASE I/O ADDRESS SELECTION |
|||||
Setting |
J1/A |
J1/B |
J1/C |
J1/D |
J1/E |
150h |
Open |
Open |
Open |
Closed |
Open |
250h |
Open |
Open |
Closed |
Open |
Open |
300h |
Open |
Closed |
Open |
Open |
Open |
340h |
Closed |
Open |
Open |
Open |
Open |
Plug & play |
Open |
Open |
Open |
Open |
Closed |
