DIGI INTERNATIONAL, INC.
DATAFIRE PRIME (PCI)
| Card Type | ISDN Card |
| Chip Set | Unidentified |
| Maximum Onboard Memory | Unidentified |
| Boot ROM | Not available |
| ISDN Transfer Rate | Unidentified |
| Topology | Star |
| Wiring Type | Unshielded twisted pair (RJ-45) |
| ISDN Protocol | B8ZS |
| Data Modulation Protocol | Unidentified |
| Data Bus | 32-bit PCI |
| Card Size | Full-length, full-height |

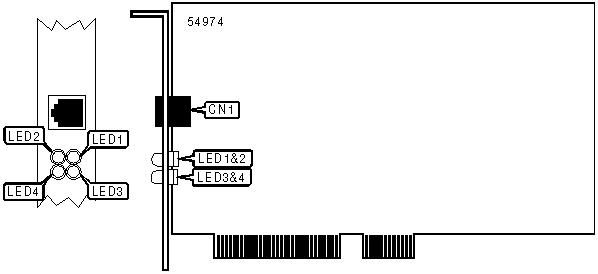

CONNECTIONS |
|
Function |
Label |
| UTP connector (RJ-45) | CN1 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
Off |
LED is not used |
LED2 |
Green |
Blinking |
Normal operation |
LED2 |
Red |
Blinking |
Misconfigured CSU/DSU |
LED2 |
Red or Green |
On |
Fatal error |
LED2 |
Green |
Off |
Fatal error |
LED3 |
Green |
On |
Normal operation |
LED3 |
Red and Green |
Blinking |
Payload loopback test in progress |
LED3 |
Red |
On |
Line loopback test in progress |
LED4 |
Green |
On |
Normal operation |
LED4 |
Red and Green |
Blinking |
Telephone company is testing line or driver configuration error |
LED4 |
Green |
Blinking |
Telephone company is testing line |
LED4 |
Red |
On |
Loss of signal or an out-of-frame condition |
