MOTOROLA, INC.
654
| Card Type | ISDN TA |
| Chip Set | Motorola |
| I/O Options | Power connector, RJ-45 (2), RJ-11 (2), 25-pin serial port |
| ISDN Data Rate | Unidentified |
| ISDN Modulation Protocol | SDLC, IP/PX, X.75, PPP |
| Error Correction/Compression | Unidentified |
| Data Bus | External |

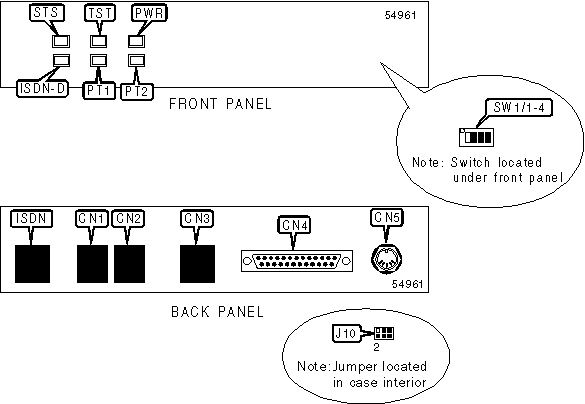

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Phone line 1 (RJ-11) | CN1 |
25-pin data port connector | CN4 |
| Phone line 2 (RJ-11) | CN2 |
DC power connector | CN5 |
| RJ-45 data port | CN3 |
RJ-45 ISDN interface | ISDN |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | 4-wire mode | J10 |
Pins 3 & 5, 4 & 6 closed |
| 2-wire mode | J10 |
Pins 1 & 3, 2 & 4 closed |
|
| 100Ohm resistance enabled | SW1/1 |
On |
|
| Unidentified | SW1/1 |
Off |
|
| » | Factory configured - do not alter | SW1/2 |
Unidentified |
| » | Factory configured - do not alter | SW1/3 |
Unidentified |
| » | Factory configured - do not alter | SW1/4 |
Unidentified |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
STS |
Unidentified |
On |
Software running |
STS |
Unidentified |
Off |
Software not running; an error has occurred |
STS |
Unidentified |
Blinking |
Software is being loaded |
TST |
Unidentified |
On |
Diagnostic test(s) failed |
TST |
Unidentified |
Off |
Device is not conducting a test |
TST |
Unidentified |
Blinking |
Device is conducting a test |
PWR |
Unidentified |
On |
Power is on |
PWR |
Unidentified |
Blinking |
Unit is operating on battery power |
PWR |
Unidentified |
Off |
Power is off |
ISDN-D |
Unidentified |
On |
ISDN connection good |
ISDN-D |
Unidentified |
Off |
ISDN connection broken |
PT1 |
Unidentified |
On |
Port 1 connected or B-channel data call connected |
PT1 |
Unidentified |
Blinking |
Port 1 off hook |
PT1 |
Unidentified |
Off |
No activity on port 1 |
PT2 |
Unidentified |
On |
Port 2 connected or B-channel data call connected |
PT2 |
Unidentified |
Blinking |
Port 2 off hook |
PT2 |
Unidentified |
Off |
No activity on port 2 |
