RAD DATA COMMUNICATIONS
FCD-14
| Card Type | T1 CSU/DSU |
| Chip Set | Unidentified |
| I/O Options | AC power connector, 25-pin DTE/DCE ports (4), 9-pin serial port, T1 network interface 15-pin connector |
| T1 Transfer Rate | 1.544Mbps |
| T1 Protocol | D4, ESF |
| Frame Type | AMI, B7ZS, B8ZS |
| Data Bus | External |

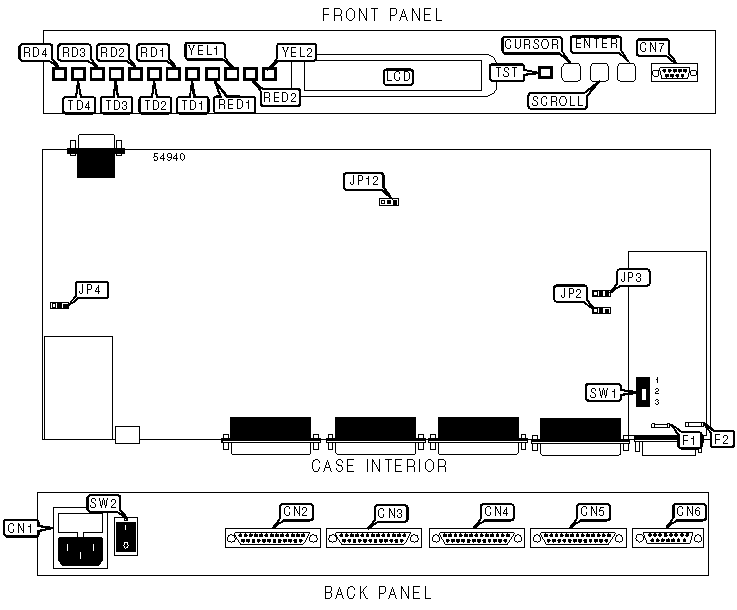

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| AC power connector | CN1 |
Main network port (15-pin connector) | CN6 |
| Channel 4 port | CN2 |
Serial port | CN7 |
| Channel 3 port | CN3 |
Fuse | F1 |
| Channel 2 port | CN4 |
Fuse | F1 |
| Channel 1 port | CN5 |
Power switch | SW2 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Debug self test mode disabled | JP2 |
Pins 2 & 3 closed |
| Debug self test mode enabled | JP2 |
Pins 1 & 2 closed |
|
| User password enabled | JP3 |
Pins 2 & 3 closed |
|
| » | Default password enabled. Password=FCD-14 | JP3 |
Pins 1 & 2 closed |
| » | Signal ground is connected to the frame ground | JP4 |
Pins 2 & 3 closed |
| Signal ground is not connected to the frame ground | JP4 |
Pins 1 & 2 closed |
|
| » | Watchdog enabled | JP12 |
Pins 2 & 3 closed |
| Watchdog disabled | JP12 |
Pins 1 & 2 closed |
|
T1 TRANSMIT LEVEL SELECTION |
||
Net build |
SW1 |
|
| » | 0dBm |
1 |
7.5dBm |
2 |
|
15dBm |
3 |
|
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
RD4 |
Unidentified |
On |
CSU/DSU is receiving data on channel 4 |
TD4 |
Unidentified |
Off |
CSU/DSU is transmitting data on channel 4 |
RD3 |
Unidentified |
On |
CSU/DSU is receiving data on channel 3 |
TD3 |
Unidentified |
Off |
CSU/DSU is transmitting data on channel 3 |
RD2 |
Unidentified |
On |
CSU/DSU is receiving data on channel 2 |
TD2 |
Unidentified |
Off |
CSU/DSU is transmitting data on channel 2 |
RD1 |
Unidentified |
On |
CSU/DSU is receiving data on channel 1 |
TD1 |
Unidentified |
Off |
CSU/DSU is transmitting data on channel 1 |
RED 1 |
Unidentified |
N/A |
Not used |
RED 1 |
Unidentified |
N/A |
Not used |
YEL 1 |
Unidentified |
N/A |
Not used |
YEL 1 |
Unidentified |
N/A |
Not used |
RED 2 |
Unidentified |
On |
CSU/DSU is detecting a red alarm condition on the main link |
RED 2 |
Unidentified |
Off |
CSU/DSU is not detecting a red alarm condition on the main link |
YEL 2 |
Unidentified |
On |
CSU/DSU is detecting a yellow alarm condition on the main link |
YEL 2 |
Unidentified |
Off |
CSU/DSU is not detecting a yellow alarm condition on the main link |
TST |
Unidentified |
On |
Device is conducting a loopback test |
TST |
Unidentified |
Off |
Device is not conducting a loopback test |
MISCELLANEOUS TECHNICAL NOTES |
The FCD-14 has three types of user-configurable data channel modules for ports CN2-CN5: V.35, X.21, or RS-530 |
