AZTECH LABS, INC.
2150 VER.1, 2160 VER.1
| Card Type | Sound/Telephony card |
| Chip Set | Unidentified |
| I/O Options | Game/MIDI port, line in, line out (2), microphone in (2), modem line out, CD audio in (2), TV audio in, radio in |
| Maximum Modem Rate | 28.8Kbps |
| Maximum Fax Rate | 14.4Kbps |
| Data Modulation Protocol | V.32bis, V.34 |
| Fax Modulation Protocol | V.17 |
| Error Correction/Compression | Unidentified |
| Fax Class | Class I & II |
| Data Bus | 16-bit ISA |
| Card Size | Full-length |

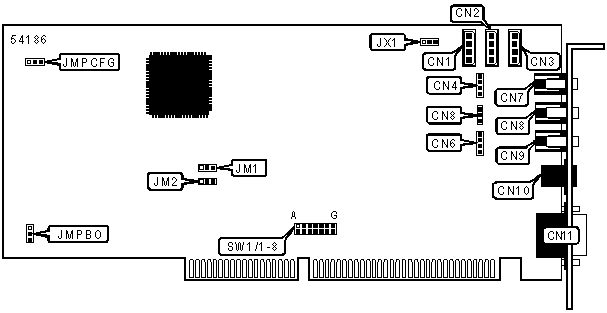

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Audio in - CD-ROM | CN1 |
Line - external | CN7 |
| Audio in - CD-ROM | CN2 |
Microphone in - external | CN8 |
| Audio in - TV | CN3 |
Line out - external | CN9 |
| Radio in connector | CN4 |
Telephone jack | CN10 |
| Microphone in - internal | CN5 |
Game/MIDI port | CN11 |
| Line out - internal | CN6 |
||
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Hardware settings based on values in the EEPROM | JMPCFG |
Pins 1 & 2 closed |
| Hardware settings ignore values in the EEPROM | JMPCFG |
Pins 2 & 3 closed |
|
| » | Condenser microphone is connected | JX1 |
Pins 1 & 2 closed |
| Carbon microphone is connected | JX1 |
Pins 2 & 3 closed |
|
COM PORT SELECTION |
||
Setting |
JM1 |
JM2 |
COM port 1 |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
COM port 2 |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
COM port 3 |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
COM port 4 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
BASE I/O ADDRESS SELECTION |
||
Setting |
JMPBO |
|
| » | 220h |
Pins 1 & 2 closed |
240h |
Pins 2 & 3 closed |
|
IRQ INTERRUPT |
||||||||
IRQ |
JM3/A |
JM3/B |
JM3/C |
JM3/D |
JM3/E |
JM3/F |
JM3/G |
|
IRQ2 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
| » | IRQ4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
IRQ5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
SUPPORTED COMMAND SET |
| Note: Command set is unidentified. |
