VISTACOM, INC.
POWERCOM/NI-10 (V.11/V.35)
| Card Type | Telephony |
| Chip Set | Unidentified |
| Maximum Onboard Memory | Unidentified |
| I/O Options | MVIP bus, high density D-type connectors(2) |
| Data Bus | 16-bit ISA |
| Card Size | Full-length, full-height |

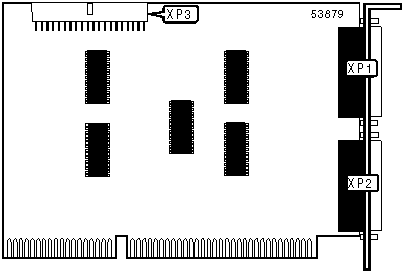

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| V.11 or V.35 serial port 1 via HDD22 connector | XP1 |
MVIP bus | XP3 |
| V.11 or V.35 serial port 2 via HDD22 connector (optional | XP2 |
||
| Note: Standard V.11 and V.35 serial ports are provided on included adapter cables. | |||
