RACAL-DATACOM
EXCALIBUR BRI 2000SP
| Card Type | ISDN TA |
| Chipset | Unidentified |
| I/O Options | Network management port |
| ISDN Transfer Rate | 56Kbps x 2/64Kbps x 2 |
| ISDN Protocol | T-Link, V.110, V.120 |
| Switch Type | 5ESS, DMS100, NI-1 |
| Data Bus | Serial |

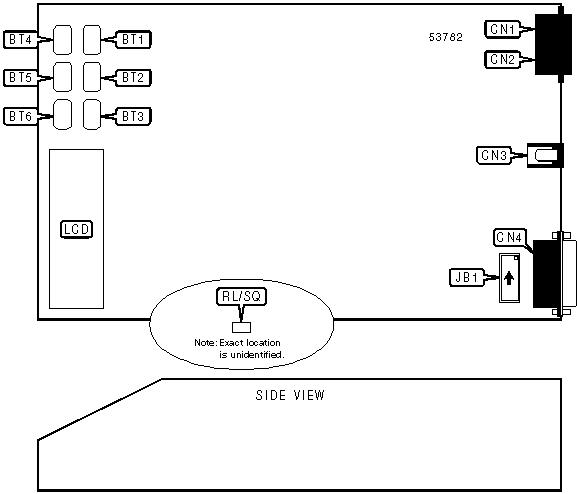

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Left arrow button | BT1 |
ISDN U interface | CN1 |
| ESC button | BT2 |
CMS 400 network management jack | CN2 |
| Right arrow button | BT3 |
AC power in | CN3 |
| 1 button | BT4 |
RS-232 or V.35 serial port via DB-26 connector | CN4 |
| 2 button | BT5 |
LCD display | LCD |
| 3 button | BT6 |
||
| Note:Standard RS-232 or V.35 serial port connectors are provided on included adapter cables. | |||
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | RL/SQ |
SQ |
SERIAL PORT CONFIGURATION |
|
JB1 |
|
RS-232 |
V.35 |
|
|
SUPPORTED STANDARD COMMANDS |
Basic AT Commands |
| +++, ‘comma’, A/ |
| A, D, E, H, O, V, X, Z |
| &C, &D, &F, &S, &W, &Z |
S-Registers |
| S2, S3, S4, S5, S7, S12, S25, S26 |
V.25bis Commands |
| CIC, CRN, CRS, DIC, PRN |
| Note:See MHI help file for complete information. |
Proprietary AT Command Set
See RACAL-DATACOM EXCALIBUR BRI 2000 for a full command summary.
