ARESCOM, INC.
FLASH 200 INTERNAL ISDN
| Card Type | ISDN TA |
| Chipset | Unidentiified |
| ISDN Transfer Rate | 64Kbps x 2 |
| ISDN Protocol | PPP |
| Switch Type | 5ESS, DMS100, NI-1, NI-2 |
| Data Bus | 16-bit ISA |
| Card Size | Full height, half length |

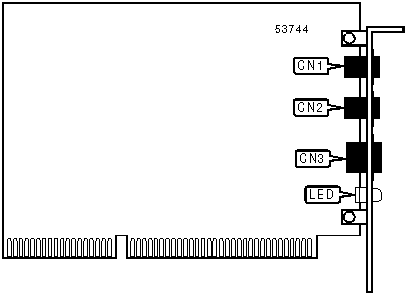

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Analog adapter 1 | CN1 |
ISDN U interface | CN3 |
| Analog adapter 2 | CN2 |
||
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED |
Unidentified |
Blinking |
ISDN line is active |
LED |
Unidentified |
Off |
ISDN line is inactive |
