MOTOROLA, INC.
651
| Card Type | ISDN TA/X.25 PAD |
| Processor | Motorola 68302 |
| Processor Speed | Unidentified |
| Chip Set | Unidentified |
| Maximum Onboard Memory | 1MB DRAM/1.25MB Flash RAM |
| Transfer Rate | 64Kbps x 2 |
| Data Bus | External |
| ISDN Protocol | Unidentified |
| Switch Type | Unidentified |

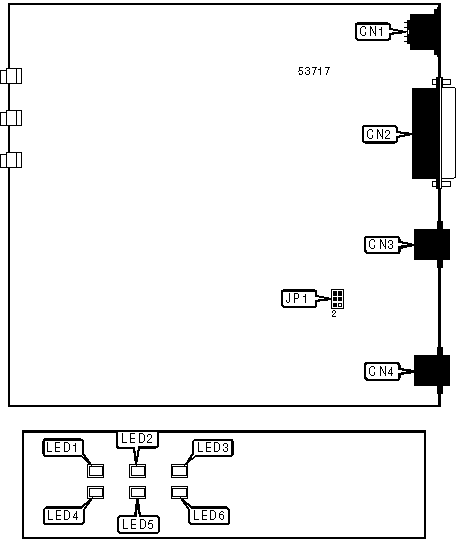

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| DC power in | CN1 |
Serial port | CN3 |
| Serial port | CN2 |
ISDN interface | CN4 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | TA is configured for 4-wire line | JP1 |
Pins 1 through 4 closed |
| TA is configured for 2-wire line | JP1 |
Pins 3 through 6 closed |
|
| Note: JP1 is supplied with a 4-pin shunt. All four pins indicated should be closed with this shunt. | |||
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green |
On |
Software is running |
LED1 |
Green |
Blinking |
Software is running |
LED1 |
Green |
Off |
Software is not running |
LED2 |
Red |
Blinking |
Diagnostic test is running |
LED2 |
Red |
Off |
Diagnostic test is not running |
LED3 |
Green |
On |
TA is receiving power from CN1 |
LED3 |
Green |
Blinking |
TA is receiving power from internal battery |
LED3 |
Green |
Off |
Power is off |
LED4 |
Yellow |
On |
ISDN is connected |
LED4 |
Yellow |
Off |
ISDN is not connected |
LED5 |
N/A |
Off |
N/A |
LED6 |
N/A |
Off |
N/A |
| Note: LED5 and LED6 have no function on this model. | |||
