AMQUEST CORPORATION
AM3314IVSP
| Card Type | Modem (synchronous/asynchronous) |
| Chipset | Rockwell ACF |
| I/O Options | Microphone in, speaker out, voice, speakerphone, DSVD |
| Maximum Data Rate | 33.6Kbps |
| Maximum Fax Rate | 14.4Kbps |
| Data Modulation | Bell 103A, 212A ITU-T V.22bis, V.32, V.32bis, V.34 Rockwell V.FC |
| Fax Modulation | ITU-T V.17, V.21CH2, V.27ter, V.29 |
| Error Correction/Compression | MNP5, MNP10, V.42, V.42bis |
| Fax Class | Class I & II |
| Data Bus | 8-bit ISA |
| Card Size | Full height, one-third length |

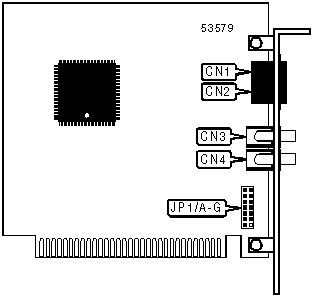

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Telephone line | CN1 |
Microphone in or speaker out | CN3 |
| Telephone line | CN2 |
Microphone in or speaker out | CN4 |
| Note:It is not identified which of CN3 is the microphone in jack and which is the speaker out jack. | |||
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | JP1/G |
Open |
SERIAL PORT ADDRESS SELECTION |
||
Setting |
JP1/E |
JP1/F |
3F8h (COM1:) |
Closed |
Closed |
2F8h (COM2:) |
Open |
Closed |
3E8h (COM3:) |
Closed |
Open |
2E8h (COM4:) |
Open |
Open |
INTERRUPT SELECTION |
||||
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
3 |
Open |
Open |
Open |
Closed |
4 |
Open |
Open |
Closed |
Open |
5 |
Open |
Closed |
Open |
Open |
7 |
Closed |
Open |
Open |
Open |
SUPPORTED STANDARD COMMANDS |
Basic AT Commands |
| +++, ‘comma’, A/ |
| A, B, E, H, L, M, N, O, P, Q, T, V, W, X, Y, Z |
| &C, &D, &F, &G, &K, &M, &P, &Q, &R, &S, &T, &V, &W, &X, &Y, &Z |
Extended AT Commands |
| \A, \B, \G, \L, \W |
| %C, %E, %F, %L, %Q |
Special AT Commands |
| #CID, :E, *H, -K, )M, @M, -Q |
S-Registers |
| The S-registers are unidentified. |
| Note:See MHI help file for complete information. |
Proprietary AT Command Set
See AMQUEST CORPORATION AM2814IV-V34 for a full command summary.
