ORBITOR 500
| Card Type | ISDN to Ethernet router |
| Chipset | Unidentified |
| Network Transfer Rate | 10Mbps |
| Topology | Star |
| Wire Type | Unshielded twisted pair |
| Error Correction/Compression | STAC LZS |
| ISDN Transfer Rate | 56Kbps x 2/64Kbps x 2 |
| ISDN Protocol | Unidentified |
| Switch Type | NET-3, NI-1 |
| Data Bus | Serial |

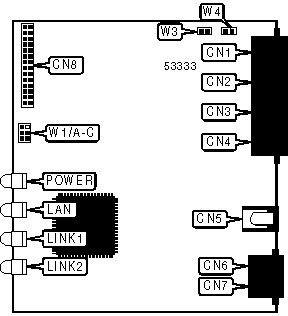

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| ISDN S/T interface | CN1 |
DC power in | CN5 |
| Standard UTP connector | CN2 |
Analog line 1 | CN6 |
| Cross-over UTP connector | CN3 |
Analog line 2 | CN7 |
| Serial port | CN4 |
Voice daughterboard header | CN8 |
| Note:Only one UTP connector may be used at one time. | |||
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Normal operation | W1/A |
Closed |
| Clear password | W1/A |
Open |
|
| » | Normal operation | W1/B |
Closed |
| Begin firmware upgrade via ZMODEM transfer | W1/B |
Open |
|
| » | Factory configured - do not alter | W1/C |
Closed |
ISDN TERMINATION |
|||
Setting |
W3 |
W4 |
|
| » | Terminated |
Closed |
Closed |
Not terminated |
Open |
Open |
|
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
POWER |
Green |
On |
Power is on and router is functioning normally |
POWER |
Green |
Blinking |
Router is booting and programming flash ROM |
POWER |
Yellow |
Blinking |
Router is booting |
POWER |
Red |
On |
Router has failed power-up diagnostics |
POWER |
N/A |
Off |
Power is off |
LAN |
Green |
On |
Network connection is good and is in forward mode |
LAN |
Yellow |
On |
Network connection is good and is in listen, learn, or block mode |
LAN |
Red |
On |
Network connection is broken |
LINK1 |
Green |
On |
ISDN B1 channel is connected in data mode |
LINK1 |
Green |
Blinking |
ISDN B1 channel is connected in voice mode |
LINK1 |
Yellow |
On |
Compression not active on ISDN B1 channel |
LINK1 |
Red |
On |
ISDN B1 channel connection failed |
LINK1 |
N/A |
Off |
ISDN B1 channel is disabled |
LINK2 |
Green |
On |
ISDN B2 channel is connected in data mode |
LINK2 |
Green |
Blinking |
ISDN B2 channel is connected in voice mode |
LINK2 |
Yellow |
On |
Compression not active on ISDN B2 channel |
LINK2 |
Red |
On |
ISDN B2 channel connection failed |
LINK2 |
N/A |
Off |
ISDN B2 channel is disabled |
