DIGI, INC.
DATAFIRE-U "472"
| Card Type | ISDN TA |
| Chipset | Motorola MC145472 |
| ISDN Transfer Rate | 56Kbps x 2/64Kbps x 2 |
| ISDN Protocol | Unidentified |
| Switch Type | 5ESS, DMS100, ITU-T, NI-1 |
| Data Bus | 16-bit ISA |

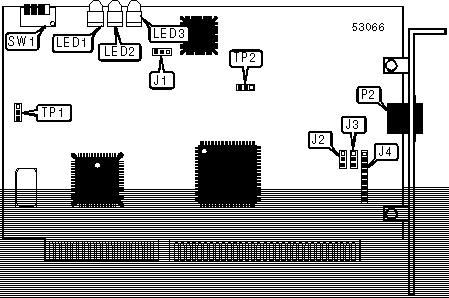

CONNECTIONS |
|
Function |
Label |
| ISDN U line out | P2 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | J1 |
Open |
| » | Factory configured - do not alter | J2 |
Open |
| » | Factory configured - do not alter | J3 |
Open |
| » | Factory configured - do not alter | J4 |
Open |
| » | Factory configured - do not alter | TP1 |
Open |
| » | Factory configured - do not alter | TP2 |
Open |
| » | Factory configured - do not alter | SW1/4 |
N/A |
BASE I/O ADDRESS |
|||
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
110h |
On |
On |
Off |
140h |
On |
Off |
On |
150h |
On |
Off |
Off |
300h |
Off |
On |
On |
310h |
Off |
On |
Off |
340h |
Off |
Off |
On |
350h |
Off |
Off |
Off |
Disabled |
On |
On |
On |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green |
On |
Board is receiving data |
LED1 |
Green |
Off |
Board is not receiving data |
LED2 |
Green |
On |
Board is transmitting data |
LED2 |
Green |
Off |
Board is not transmitting data |
LED3 |
Green |
On |
Carrier signal detected |
LED3 |
Green |
Off |
Carrier signal not detected |
