ADC KENTROX
DATASMART MAX MODEL 72765
| Card Type | T1 CSU/DSU |
| Chipset | Unidentified |
| T1 Transfer Rate | 1.544Mbps |
| T1 Protocol | AMI, B8ZS |
| Frame Type | SF, ESF, Ericsson |
| Data Bus | Serial |

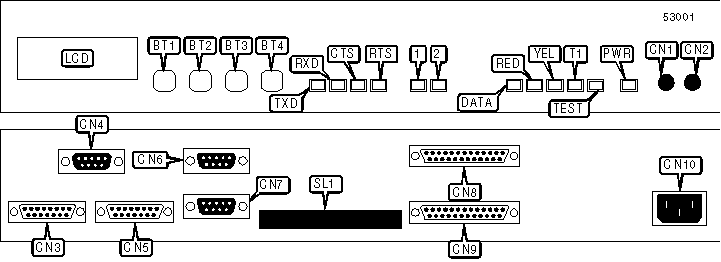

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| PREVIOUS button | BT1 |
T1 line in (Terminal interface) | CN5 |
| NEXT button | BT2 |
V.24 DCE serial control port | CN6 |
| ESCAPE button | BT3 |
V.24 DTE serial control port | CN7 |
| SELECT button | BT4 |
EIA-530 or V.35 serial data port 1 | CN8 |
| Monitor receive port | CN1 |
EIA-530 or V.35 serial data port 2 | CN9 |
| Monitor transmit port | CN2 |
AC power in | CN10 |
| T1 line out (Network interface) | CN3 |
LCD display | LCD |
| RS-422 auxiliary clock port | CN4 |
PCMCIA slot | SL1 |
| Note:Standard V.35 serial ports are available on included adapter cables. | |||
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
RXD |
Yellow |
On |
DSU is receiving data from data port indicated by LED1-2 |
RXD |
Yellow |
Off |
DSU is not receiving data from data port indicated by LED1-2 |
TXD |
Yellow |
On |
DSU is transmitting data to data port indicated by LED1-2 |
TXD |
Yellow |
Off |
DSU is not transmitting data to data port indicated by LED1-2 |
CTS |
Yellow |
On |
Data port indicated by LED1-2 CTS is high |
CTS |
Yellow |
Off |
Data port indicated by LED1-2 CTS is low |
DIAGNOSTIC LED(S) (CON’T) |
|||
LED |
Color |
Status |
Condition |
RTS |
Yellow |
On |
Data port indicated by LED1-2 RTS is high |
RTS |
Yellow |
Off |
Data port indicated by LED1-2 RTS is low |
1 |
Yellow |
On |
TXD, RXD, CTS, and RTS LEDs indicate status of data port 1 |
1 |
Yellow |
Blinking |
Loss of Signal detected on data port 1 |
1 |
Yellow |
Off |
TXD, RXD, CTS, and RTS LEDs do not indicate status of data port 1 |
2 |
Yellow |
On |
TXD, RXD, CTS, and RTS LEDs indicate status of data port 2 |
2 |
Yellow |
Blinking |
Loss of Signal detected on data port 2 |
2 |
Yellow |
Off |
TXD, RXD, CTS, and RTS LEDs do not indicate status of data port 2 |
DATA |
Green |
On |
Valid data signal detected on T1 network interface |
DATA |
Green |
Off |
No valid signal detected on T1 network interface |
RED |
Red |
On |
Loss Of Signal condition detected on T1 network interface |
RED |
Red |
Slow blink |
Alarm Indication Signal condition detected on T1 network interface |
RED |
Red |
Fast blink |
T1 network interface signal is out of frame synchronization |
RED |
Red |
Off |
No red alarm conditions detected on T1 network interface |
YEL |
Yellow |
On |
Remote Loss Of Signal or out of frame synchronization condition detected on T1 network interface |
YEL |
Yellow |
Off |
No remote Loss Of Signal or out of frame synchronization condition detected on T1 network interface |
T1 |
Green |
On |
Valid data signal detected on T1 terminal interface |
T1 |
Red |
On |
Loss Of Signal, out of frame synchronization, Alarm Indication Signal, or yellow alarm condition detected on T1 terminal interface |
T1 |
N/A |
Off |
No valid signal detected on T1 terminal interface |
TEST |
Yellow |
On |
Local loopback test in progress |
TEST |
Yellow |
Blinking |
Test code, remote loopback, or Bit Error Rate Test in progress |
TEST |
Yellow |
Off |
No tests are in progress |
PWR |
Green |
On |
Power is on |
PWR |
Red |
On |
Self-test failed |
PWR |
Green |
Blinking |
User is logged in |
PWR |
Alternating green/red |
Blinking |
Downloading software |
PWR |
N/A |
Off |
Power is off |
