PROMETHEUS PRODUCTS, INC.
CYBERPORT PC288I
| Card Type | Fax, Modem (asynchronous) |
| Chip Set | Unidentified |
| Maximum Data Rate | 28.8Kbps |
| Maximum Fax Rate | 14.4Kbps |
| Data Bus | 16-bit ISA |
| Fax Class | Class II |
| Data Modulation Protocol | Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34 |
| Fax Modulation Protocol | ITU-T V.17, V.21CH2, V.27ter, V.29, V.33 |
| Error Correction/Compression | MNP5, V.42, V.42bis |

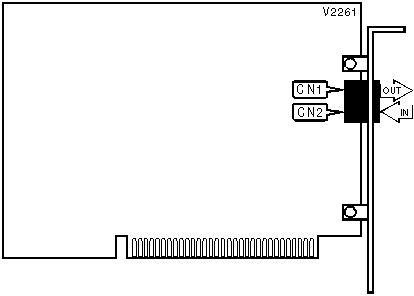

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Line out | CN1 |
Line in | CN2 |
Proprietary AT Command Set
See document PROMETHEUS PRODUCTS, INC., CYBERPORT PRO PC288IV, CYBERPHONE PC288IVSP for a full command summary.
