EICON TECHNOLOGY, INC.
ISDN-S2M ISA
| Card Type | ISDN TA |
| Processor | 80486 |
| Processor Speed | 33MHz |
| Chip Set | Unidentified |
| Maximum Onboard Memory | 4MB DRAM (exact location unidentified) |
| Transfer Rate | 64Kbps x 30 |
| Data Bus | 16-bit ISA |
| ISDN Protocol | X.75, LAPD, SDLC |
| Switch Type | 1TR6, DSS1 |

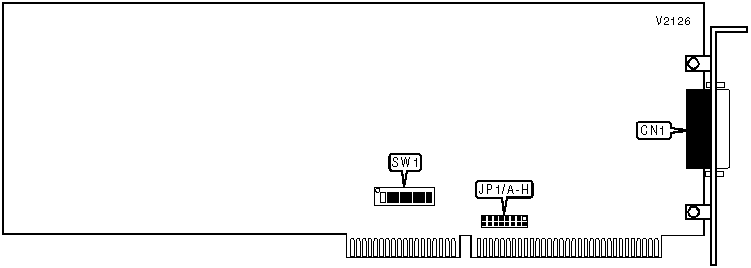

CONNECTIONS |
|
Function |
Label |
| ISDN line | CN1 |
| Note: Standard ISDN connectors are provided on an included adapter cable. | |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | SW1/1 |
Off |
| » | Normal bus operation | SW1/2 |
On |
| Bus compatibility mode | SW1/2 |
Off |
|
| » | Factory configured - do not alter | SW1/8 |
Off |
SHARED RAM ADDRESS |
||||||
Setting |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
|
00000h |
On |
On |
On |
On |
On |
|
00400h |
On |
On |
On |
On |
Off |
|
00800h |
On |
On |
On |
Off |
On |
|
00C00h |
On |
On |
On |
Off |
Off |
|
01000h |
On |
On |
Off |
On |
On |
|
| » | D0000h |
On |
Off |
On |
Off |
Off |
FEC00h |
Off |
Off |
On |
Off |
Off |
|
FF000h |
Off |
Off |
Off |
On |
On |
|
FF400h |
Off |
Off |
Off |
On |
Off |
|
FF800h |
Off |
Off |
Off |
Off |
On |
|
FFC00h |
Off |
Off |
Off |
Off |
Off |
|
| Note: A total of 32 base address settings are available. The switches are a binary representation of the hexadecimal memory addresses. SW1/7 is the Most Significant Bit and switch SW1/3 is the Least Significant Bit. The switches have the following hexadecimal values: SW1/7=4000h, SW1/6=2000h, SW1/5=1000h, SW1/4=800h, SW1/3=400h. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=1, On=0) | ||||||
INTERRUPT |
|||||||||
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
|
IR/FONT |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
| » | IRQ3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
IRQ4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
IRQ7 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
