Card Type	Fax, DSVD Modem (asynchronous), Sound card
Chip Set	Unidentified
I/O Options	Audio line in, Audio line out, CD-ROM interface, MIDI/game port, Microphone connector, Speakerphone
Maximum Modem Rate	28.8Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	16-bit ISA
Fax Class	Class I & II
Data Modulation Protocol	ITU-T V.34
Fax Modulation Protocol	ITU-T V.17
Error Correction/Compression	MNP5, V.42, V.42bis

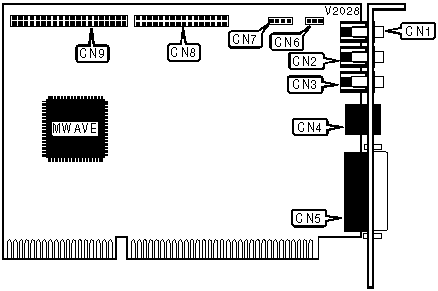

CONNECTIONS
Function	Label	Function	Label
Microphone	CN1	CD-ROM audio connector - Panasonic	CN6
Audio line in	CN2	CD-ROM audio connector - Sony	CN7
Audio line out	CN3	CD-ROM controller connector - Sony	CN8
Phone line in/out	CN4	CD-ROM controller connector - Panasonic	CN9
MIDI/game port	CN5
