UNIDENTIFIED
V.32BIS MODEL/V.32 MODEL
| Modem Type | Data (synchronous/asynchronous) |
| Maximum Data Rate | 14.4Kbps |
| Data Bus | 8-bit ISA |
| Data Modulation Protocol | ITU-T V.32, V.32bis |
| Error Correction/Compression | MNP 2 - 5, ITU-T V.42, V.42bis |

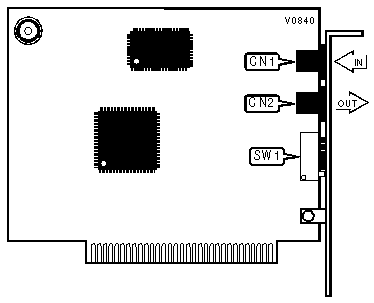

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| Line in | CN1 |
Line out | CN2 |
BASE I/O ADDRESS SELECTION |
|||
Address |
SW1/1 |
SW1/2 |
|
| » | COM1 |
On |
On |
COM2 |
Off |
On |
|
COM3 |
On |
Off |
|
COM4 |
Off |
Off |
|
INTERRUPT SELECTION |
|||||
IRQ |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
| » | IRQ4 |
Off |
Off |
On |
Off |
IRQ2 |
On |
Off |
Off |
Off |
|
IRQ3 |
Off |
On |
Off |
Off |
|
IRQ5 |
Off |
Off |
Off |
On |
|
