BOCA RESEARCH, INC.
14.4KBPS V.32BIS MODEM
|
Modem Type |
Data (Asynchronous)/Fax |
|
Maximum Data Rate |
14.4Kbps |
|
Maximum Fax Rate |
N/A |
|
Data Bus |
16-bit ISA |
|
Fax Class |
Class II |
|
Data Modulation Protocol |
Bell 103A & 212A, CCITT V.32bis & V.32 & V.22 & V.21 |
|
Fax Modulation Protocol |
GRP III |
|
Error Correction/Compression |
CCITT V.42bis & V.42, MNP 2- |
|

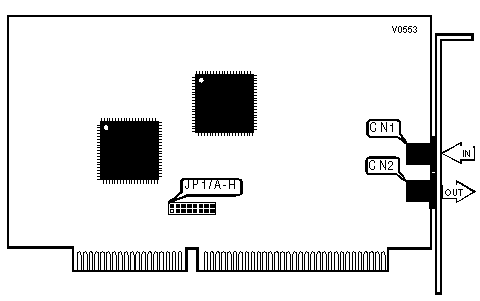

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Line in |
CN1 |
Line out |
CN2 |
|
INTERRUPT SELECT |
||||
|
IRQ |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
|
IRQ3 |
Closed |
Open |
Open |
Open |
|
IRQ4 |
Open |
Closed |
Open |
Open |
|
IRQ5 |
Open |
Open |
Closed |
Open |
|
IRQ7 |
Open |
Open |
Open |
Closed |
|
COM PORT SETTINGS |
||||
|
COM |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
|
COM1 |
Closed |
Open |
Open |
Open |
|
COM2 |
Open |
Closed |
Open |
Open |
|
COM3 |
Open |
Open |
Closed |
Open |
|
COM4 |
Open |
Open |
Open |
Closed |
