PHILIPS CONSUMER ELECTRONICS, CO.
CDRW400
| Device Type | Internal CD Rewriter Drive |
| Interface | ATAPI |
| Spin Rate (Read/Write) | 16X / 4X |
| Formats Supported Read | CD-ROM, CD-ROM
XA, CD-I, CD-DA, CD-Extra, Video CD, CD-RW, CD-R |
| Formats Supported Write | CD-RW, CD-R |

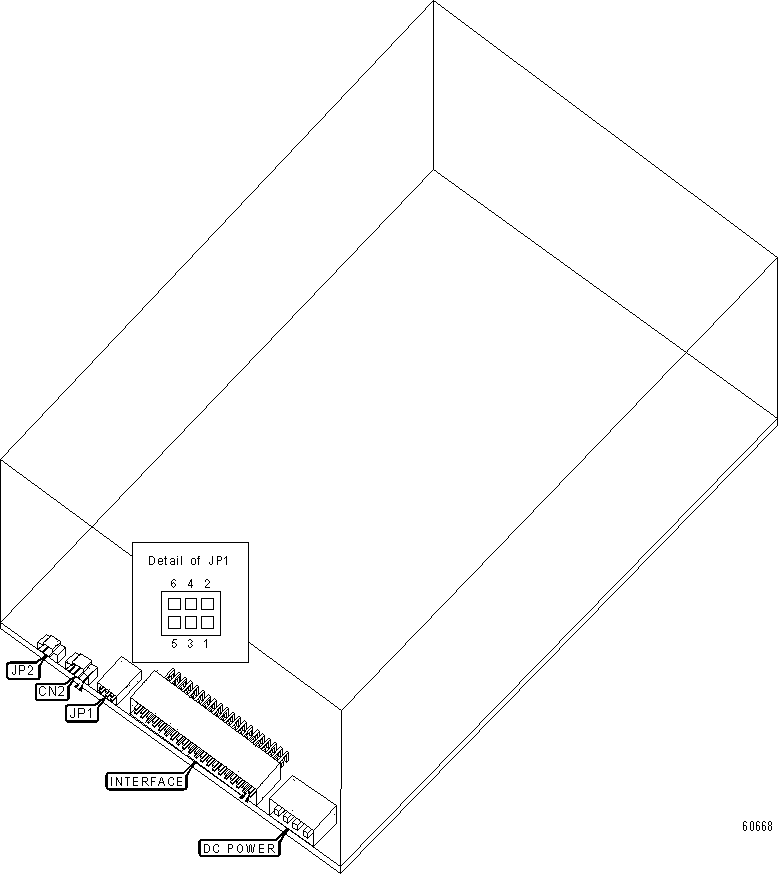

| View | Top |
CONNECTIONS |
|
Function |
Label |
| Audio-out connector | CN 2 |
USER CONFIGURABLE SETTINGS |
||
Setting |
Label |
|
| » | Factory configured - do not alter | JP2 |
ATAPI MASTER/SLAVE |
||
Setting |
JP1 | |
| » | Single drive only | Pins 1 & 2 closed |
| Master in two drive system | Pins 1 & 2 closed | |
| Slave in two drive system | Pins 3 & 4 closed | |
| Master/slave determined by cable select | Pins 5 & 6 closed | |
