NEC TECHNOLOGIES, INC.
CDR-1910
| Device Type | Internal CD-ROM drive |
| Interface | SCSI |
| Spin Rate (Read/Write) | Unidentified |
| Formats Supported Read | Photo CD, Multisession |

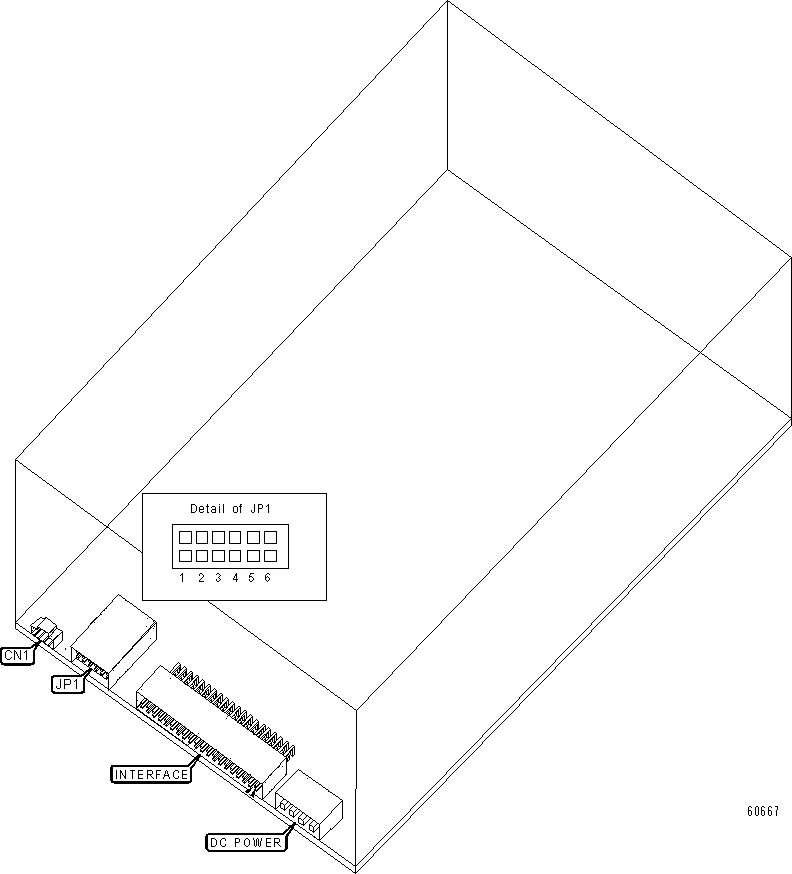

| View | Top |
CONNECTIONS |
|
Function |
Label |
| Line out connector | CN1 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | JP1/4 | Unidentified |
| » | Built-in terminator enabled | JP1/5 | Closed |
| Built-in terminator disabled | JP1/5 | Open | |
| » | Factory configured - do not alter | JP1/6 | Unidentified |
SCSI ID SELECTION |
|||
Drive ID |
JP1/1 | JP1/2 | JP1/3 |
0 |
Open | Open | Open |
1 |
Closed | Open | Open |
2 |
Open | Closed | Open |
3 |
Closed | Closed | Open |
4 |
Open | Open | Closed |
5 |
Closed | Open | Closed |
6 |
Open | Closed | Closed |
7 |
Closed | Closed | Closed |
