AOPEN, INC.
CD 932E
| Device Type | Internal CD-ROM Drive |
| Interface | ATAPI (EIDE) |
| Spin Rate | 32X |
| Formats Supported Read | CD-ROM (Mode 1 & Mode 2), CD-XA, CD-I, Photo CD, CD-E, CD-RW, CD-WO |
| View | Top |

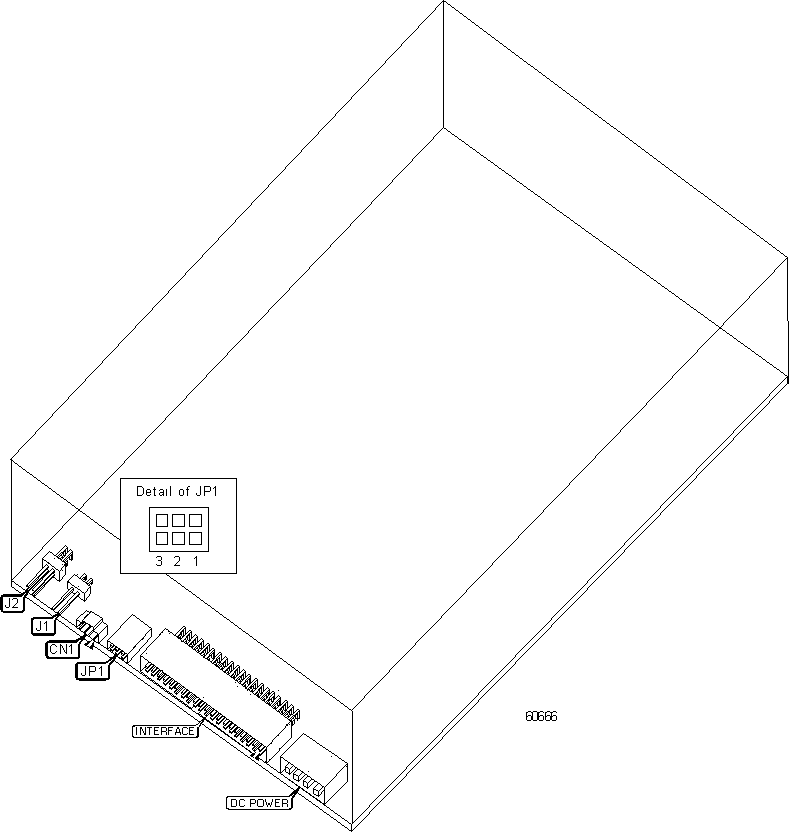

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Analog audio-out connector | CN1 | Digital audio connector | J1 |
USER CONFIGURABLE SETTINGS |
||
Setting |
Label |
|
| » | Factory configured - do not alter | J2 |
ATAPI MASTER/SLAVE |
|||
Setting |
JP1/1 | JP1/2 | JP1/3 |
| Single drive only | Closed | Open | Open |
| Master in two drive system | Closed | Open | Open |
| Slave in two drive system | Open | Closed | Open |
| Master/slave determined by cable select | Open | Open | Closed |
Note: Alternative slave setting is leaving JP1 open. |
|||
