PLEXTOR
PX-45CH EXTERNAL
| Device Type | External CD-ROM |
| Interface | SCSI |
| Spin Rate (Read/Write) | 4x |
| Formats Supported Read | CD-XA; CD-DA; CD-ROM Mode 1; Photo-CD; Video CD (MPEG) |

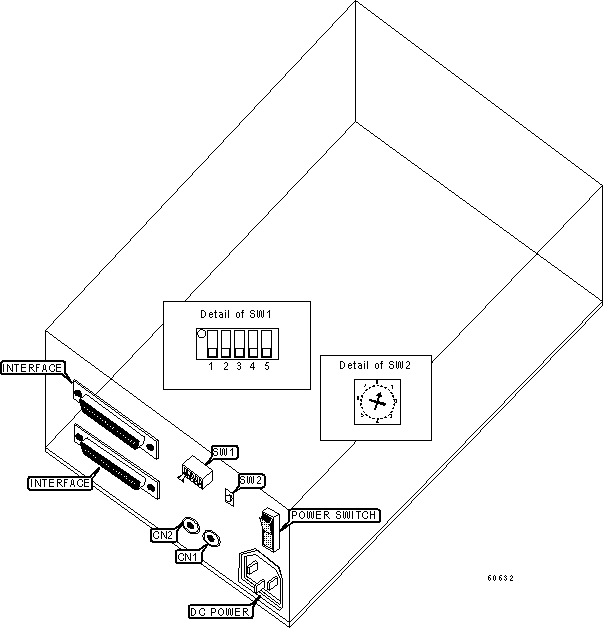

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Audio line out - right | CN1 | Audio line out - left | CN2 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Parity check enabled | SW1/1 |
On |
| Parity check disabled | SW1/1 |
Off |
|
| » | Auto data transfer | SW1/2 |
On |
| Fix data transfer | SW1/2 |
Off |
|
| » | Factory configured - do not alter | SW1/3 |
Off |
| » | UNIX environment disabled | SW1/4 |
Off |
| UNIX environment enabled | SW1/4 |
On |
|
| » | Eject lock disabled | SW1/5 |
Off |
| Eject lock enabled | SW1/5 |
On |
|
SCSI ID SELECTION |
| Note: SW2 is for SCSI ID selection, 0 through 7. To select the SCSI ID, rotate SW2 to the desired ID number. The factory setting is set to 2. |
