CREATIVE LABS, INC.
36X MAX CD-ROM DRIVE (CD3620E)
| Device Type | Internal CD-ROM |
| Interface | ATAPI |
| Spin Rate (Read) | 36x |
| Formats Supported Read | CD DA, CD-ROM (Mode 1 & Mode 2), CD-XA (Mode 1 & Mode 2), CD-I, Photo-CD, CD-WO, CD-Extra |

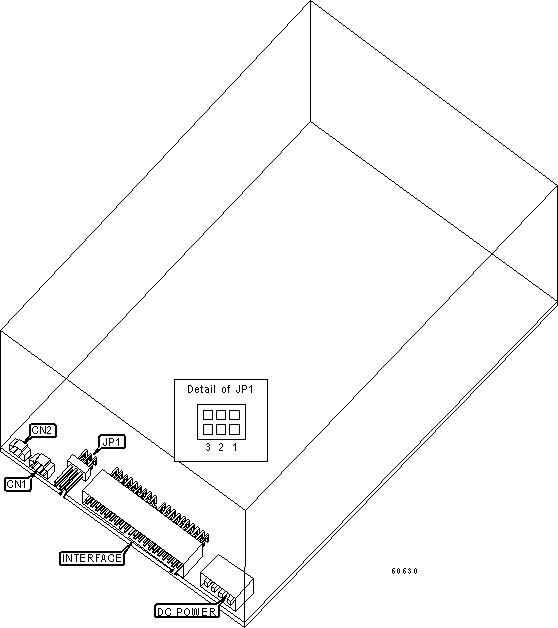

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Audio line out | CN1 | Digital audio line out | CN2 |
ATAPI MASTER/SLAVE |
|||
Setting |
JP1/1 | JP2/2 | JP2/3 |
| Master in two drive system | Closed | Open | Open |
| Slave in two drive system | Open | Closed | Open |
| Master/slave determined by cable select | Open | Open | Closed |
