CREATIVE LABS, INC.
DOUBLESPEED CD-ROM (CDU-33A)
| Device Type | Internal CD-ROM Drive |
| Interface | IDE(AT) |
| Spin Rate | 2x |
| Formats Supported | CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD |

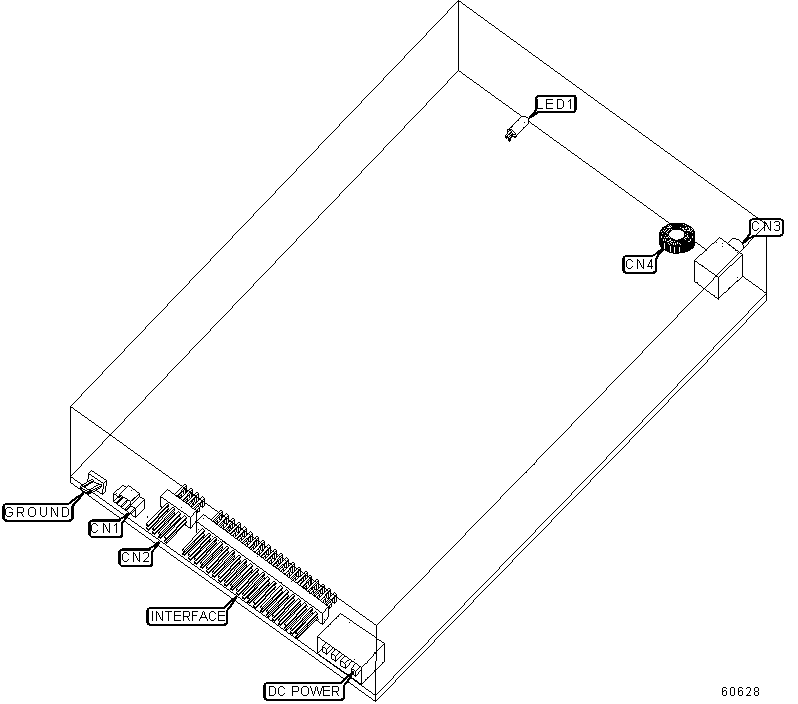

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Audio line out | CN1 | Headphone | CN3 |
| Sony interface | CN2 | Volume control | CN4 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| LED1 | Unidentified | On/Blinking | Data is being transmitted/received |
| LED1 | Unidentified | Off | Data is not being transmitted/received |
