CREATIVE LABS, INC.
DOUBLESPEED CD-ROM (E2800UA)
| Device Type | Internal CD-ROM Drive |
| Interface | IDE(AT) |
| Spin Rate | 2x |
| Formats Supported | CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD |

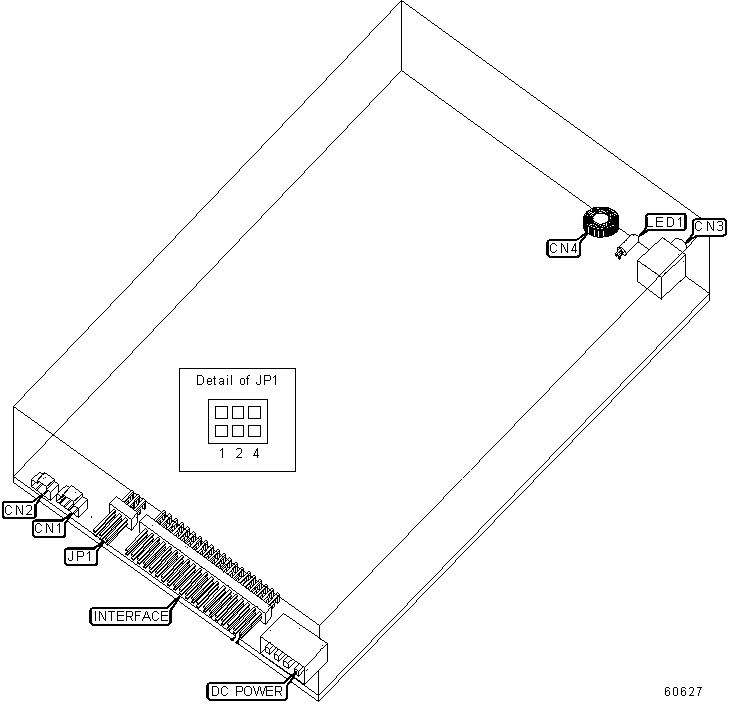

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Audio line out | CN1 | Headphone | CN3 |
| Digital audio line out | CN2 | Volume control | CN4 |
DRIVE SELECT ID |
|||
Drive ID |
J P1/1 |
J P1/2 |
JP1/4 |
1 |
Closed | Open | Open |
2 |
Open | Closed | Open |
4 |
Open | Open | Closed |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| LED1 | Unidentified | On/Blinking | Data is being transmitted/received |
| LED1 | Unidentified | Off | Data is not being transmitted/received |
