AFREEY, INC.
DD-3204E, DD-3205E, DD-3206E, DD-4008E
| Device Type | Internal DVD Drive |
| Interface | IDE(AT) |
| DVD Format Capacity | Unidentified |
| Formats Supported Read | CD-XA, CD-DA, CD-RW, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus, CD-WO, DVD-ROM |

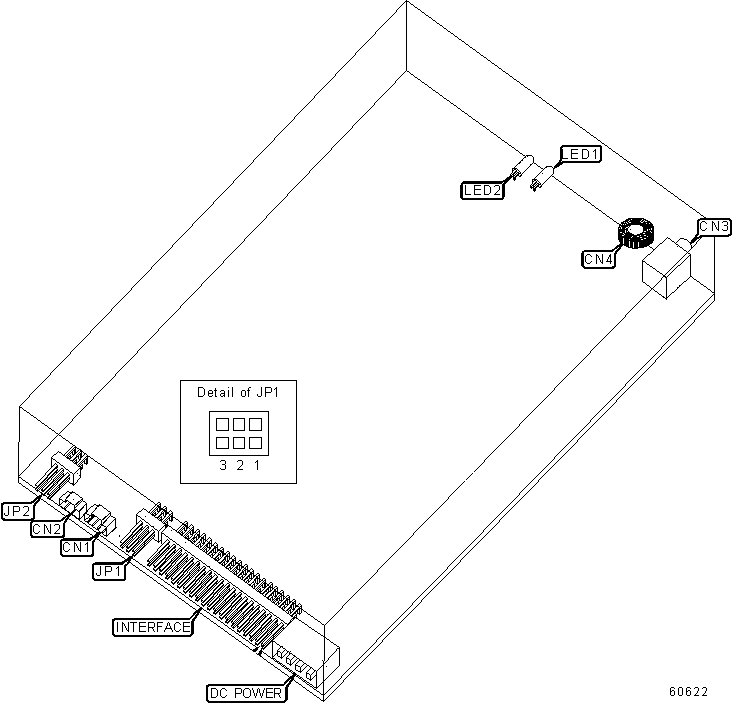

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Audio line out | CN1 | Headphone | CN3 |
| Digital audio line out | CN2 | Volume control | CN4 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | JP2 | Unidentified |
| CD-ROM SPIN RATE | |
M odel |
Capacity |
| DD-3204E | 4x |
| DD-3205E | 5x |
| DD-3206E | 6x |
| DD-4008E | 8x |
MASTER/SLAVE SELECTION |
|||
Setting |
JP1/1 | JP1/2 | JP1/3 |
| Master in two drive system | Closed | Open | Open |
| Slave in two drive system | Open | Closed | Open |
| Master/slave determined by cable select | Open | Open | Closed |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| LED1 | Unidentified | On | DVD disk is in the drive |
| LED1 | Unidentified | Off | DVD disk is not in the drive |
| LED2 | U nidentified |
On |
Power is on |
| LED2 | U nidentified |
Off |
Power is off |
| LED2 | Unidentified |
Blinking |
Data is being transmitted/received |
