YAMAHA CORPORATION
CRW4260TX
| Device Type | External CD-RW |
| Interface | SCSI-2 |
| Spin Rate (Read/Write) | 6x/4x |
| Formats Supported Read | CD-XA, CD-DA, CD-I, CD-ROM, Video CD, CD-Bridge, CD-Extra |
| Formats Supported Write | CD-XA, CD-DA, CD-I, CD-ROM, Video CD, CD-Bridge, CD-Extra |

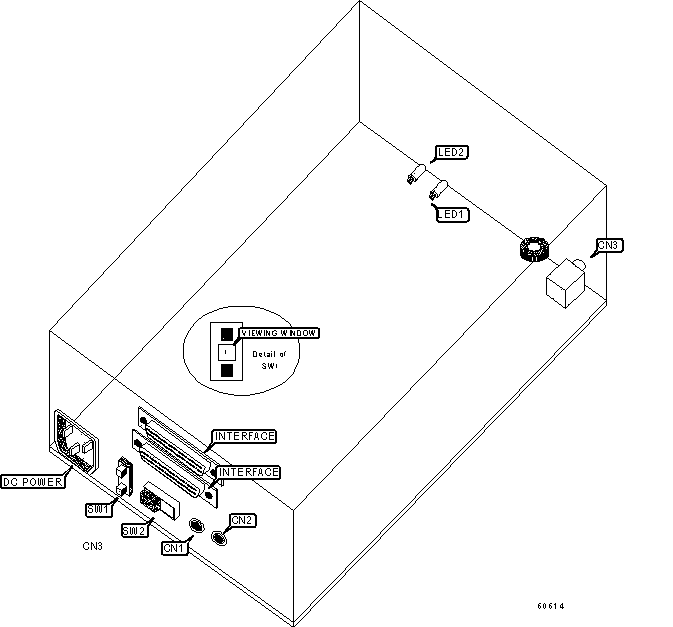

| View | Top, Front |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Audio line out - right/left | CN1 |
Headphone | CN3 |
| Audio line out - right/left | CN2 |
||
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| Termination enabled | SW2 |
On |
|
| Termination disabled | SW2 |
Off |
|
DRIVE SELECT ID |
| Note: SCSI ID is selected be activating SW1 until the desired number is displayed in the viewing window. |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Orange |
On |
Power is on |
LED1 |
Orange |
Off |
Power is off |
LED1 |
Orange |
Blinking |
Inserting or ejecting disc |
LED1 |
Green |
On |
Unit contains a disc |
LED2 |
Green |
On |
Data is being transmitted |
LED2 |
Green |
Blinking |
Data is being accessed |
LED2 |
Green |
Off |
Data is not being transmitted |
LED2 |
Orange |
On |
Data is being recorded |
LED2 |
Orange |
Blinking |
Unit is preparing to record |
