EXP COMPUTER, INC.
CD-620, CDG-820
| Device Type | External CD-ROM |
| Interface | PCMCIA |
| Spin Rate | Unidentified |
| Formats Supported | Unidentified |

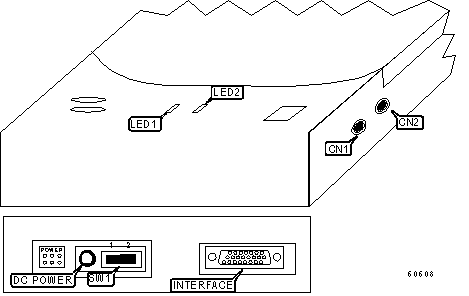

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Audio headphone line out | CN1 |
Audio line out | CN2 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| Power source PCMCIA socket | SW1 |
Postion 2 |
|
| Power source AC adapter or Batteries | SW1 |
Position 1 |
|
| Note: AC adapter has priority over battery power | |||
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
On |
Power supply is normal |
LED1 |
Unidentified |
Off |
Power supply is PCMCIA socket |
LED1 |
Unidentified |
Blinking |
Power supply is low |
LED2 |
Unidentified |
Dim |
Power is on |
LED2 |
Unidentified |
Bright |
Ready state |
LED2 |
Unidentified |
Blinking |
Data is being transmitted |
LED2 |
Unidentified |
Blinking (2 seconds) |
Cover is open |
