EXP COMPUTER, INC.
CD-421
| Device Type | External CD-ROM |
| Interface | PCMCIA |
| Spin Rate (Read/Write) | 4x |
| Formats Supported Read | CD-XA, CD-DA, CD-ROM (Mode 1 & Mode 2), Photo-CD |

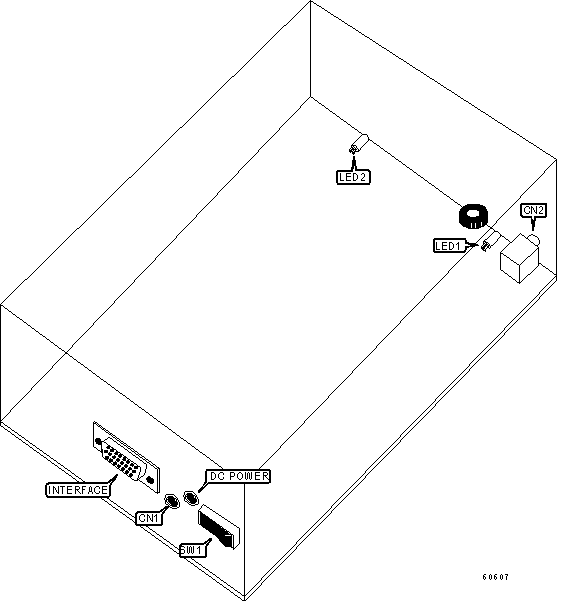

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Audio line out | CN1 |
Headphone | CN2 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| AC adapter power source | SW1 |
Unidentified |
|
| Battery power source | SW1 |
Unidentified |
|
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green |
On |
Power is on |
LED1 |
Green |
Off |
Power is off |
LED1 |
Green |
Blinking |
Data is being transmitted |
LED2 |
Green |
On |
Power is on |
LED2 |
Green |
Off |
Power is off |
LED2 |
Green |
Blinking |
Power is low |
