CYBER DRIVE
CD-ROM 361D, CD-ROM 362D
| Device Type | Internal CD-ROM |
| Interface | ATAPI |
| Spin Rate | 36x |
| Formats Supported | CD-XA, CD-DA, CD-I, CD-ROM (Mode 1), Photo-CD, Video-CD, CD-Plus |

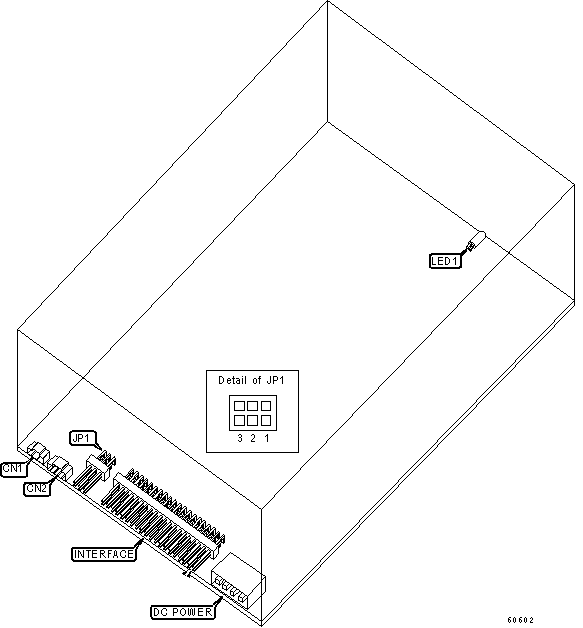

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Digital audio line out | CN1 |
Audio line in | CN2 |
ATAPI MASTER/SLAVE |
||||
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
|
| » | Master in two drive system | Closed |
Open |
Open |
| Slave in two drive system | Open |
Closed |
Open |
|
| Master/slave determined by cable select | Open |
Open |
Closed |
|
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
On |
Data is being transmitted |
LED1 |
Unidentified |
Off |
Data is not being transmitted |
