CREATIVE LABS, INC.
DVD-ROM (DVD6240E)
| Device Type | Internal DVD CD-ROM |
| Interface | ATAPI |
| Spin Rate (DVD) | 6x |
| Spin Rate (CD-ROM) | 24x |
| Formats Supported Read | CD-XA, CD-DA, CD-R, CD-RW, CD-I, CD-ROM (Mode 1 & Mode 2), DVD-R, DVD-ROM |
| DVD Format Capacity | DVD-5,DVD-9 |

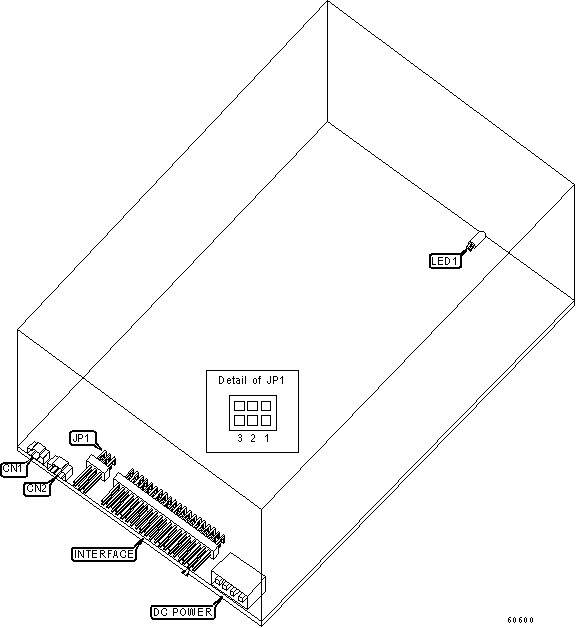

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Digital audio line out | CN1 |
Audio line in | CN2 |
ATAPI MASTER/SLAVE |
||||
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
|
| » | Master in two drive system | Closed |
Open |
Open |
| Slave in two drive system | Open |
Closed |
Open |
|
| Master/slave determined by cable select | Open |
Open |
Closed |
|
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
Blinking |
Data is being transmitted |
LED1 |
Unidentified |
Off |
Data is not being transmitted |
