CYBER DRIV
ECD-ROM 160D
| Device Type | Internal CD-ROM |
| Interface | ATAPI |
| Spin Rate | 16x |
| Formats Supported | CD-DA, CD-I, Video CD, CD Plus, CD-XA, Photo-CD (single & multi-session) |
| View | Top |

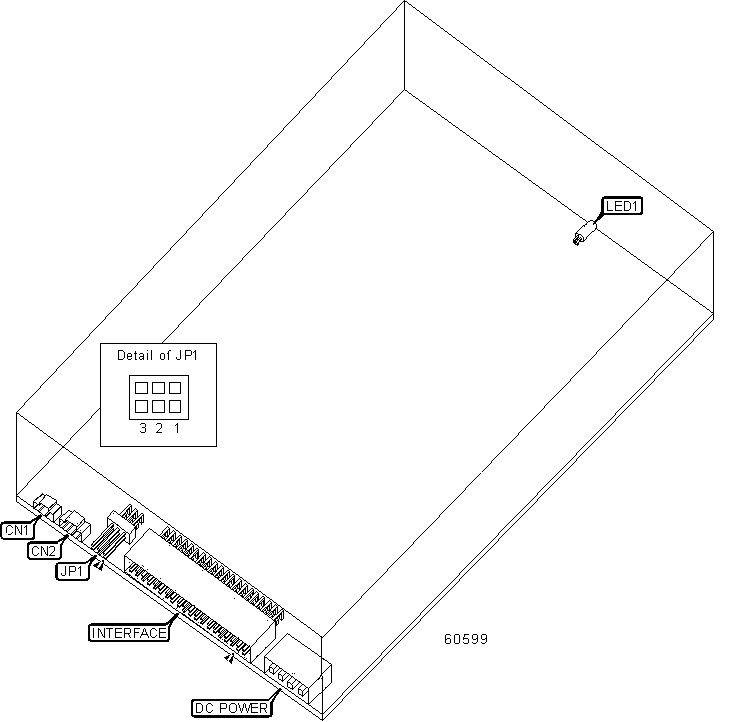

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Digital audio line out | CN1 | Analog audio line out | CN2 |
ATAPI MASTER/SLAVE |
|||
Setting |
JP1/1 | JP1/2 | JP1/3 |
| Single drive only | Closed | Open | Open |
| Master in two drive system | Closed | Open | Open |
| Slave in two drive system | Open | Closed | Open |
| Master/slave determined by cable select | Open | Open | Closed |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
On | Data being accessed from disk or playing audio |
LED1 |
Unidentified | Off | Drive is not active |
