CREATIVE LABS, INC
.48X CD-ROM (BCD48SB), 48X CD-ROM (CD4832E)
| Device Type | Internal CD-ROM |
| Interface | ATAPI |
| Spin Rate | 48x |
| Formats Supported | CD-DA, CD Extra, CD-I, Photo-CD (single & multisession), CD-Plus, CD-R, CD-RW, CD-XA, Video-CD |

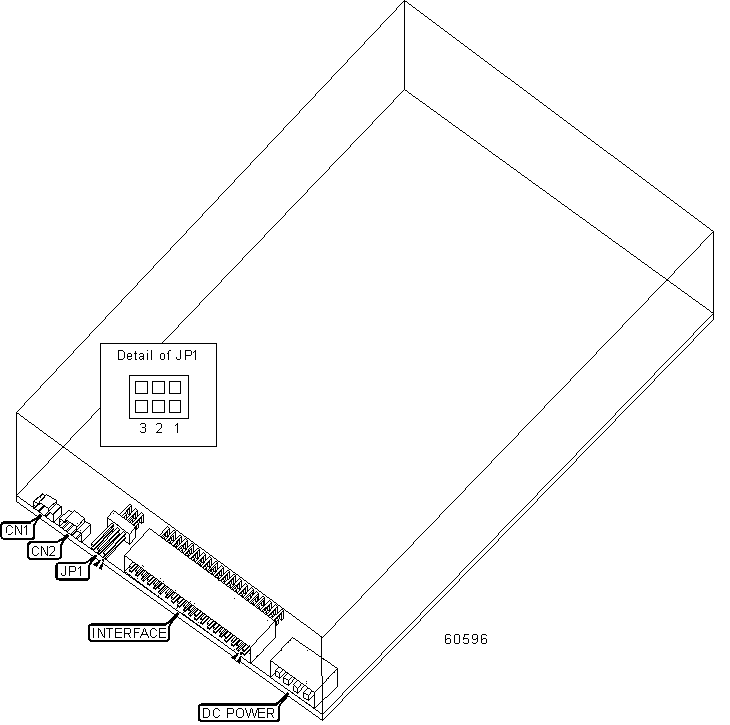

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Digital audio line out | CN1 | Analog audio line out | CN2 |
ATAPI MASTER/SLAVE |
|||
Setting |
JP1/1 | JP1/2 | JP1/3 |
| Master in two drive system | Closed | Open | Open |
| Slave in two drive system | Open | Closed | Open |
| Master/slave determined by cable select | Open | Open | Closed |
