TOSHIBA
SD-M1201
| Device Type | Internal DVD-ROM |
| Interface | SCSI-2 |
| Spin Rate | 5x(DVD-ROM), 32x(CD-ROM) |
| Formats Supported | DVD-ROM, DVD Video, CD-ROM XA, CD-I Bridge, (Photo CD, Video CD), CD-I Ready, CD-DA, CD-G and multisession (Photo-CD), CD-Extra, CD-MIDI, CD-TEXT, CD-R/RW |
| View | Top |

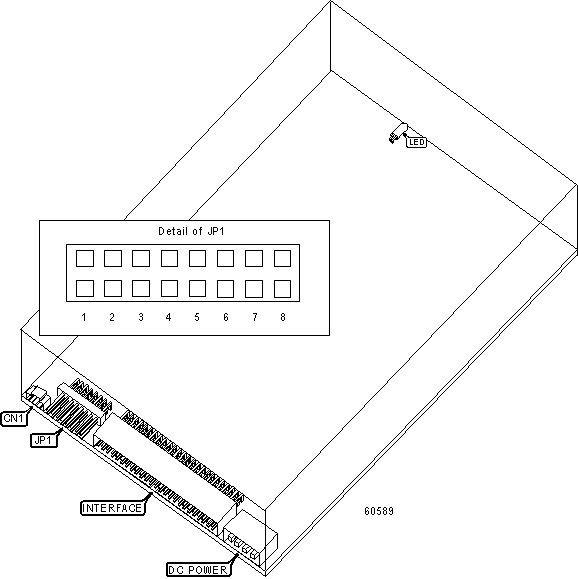

CONNECTIONS |
|
Function |
Label |
| Audio connector | CN1 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| Parity check enabled | JP1/4 |
Open |
|
| Parity check disabled | JP1/4 |
Closed |
|
| » | Verify (written data on the media after the write operation) enabled | JP1/5 |
Open |
| Verify disabled | JP1/5 |
Closed |
|
| » | One LUN (Logical Unit Number) | JP1/6 |
Open |
| Two LUN (Logical Unit Number) | JP1/6 |
Closed |
|
| Test enabled (commands from the host computer are ignored) | JP1/7 |
Closed |
|
| » | Test disabled | JP1/7 |
Open |
| Termination enabled | JP1/8 |
Closed |
|
| Termination disabled | JP1/8 |
Open |
|
DRIVE SELECT ID |
||||
Drive ID |
JP1/1 |
JP1/2 |
JP1/3 |
|
0 |
Open |
Open |
Open |
|
1 |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open |
|
3 |
Closed |
Closed |
Open |
|
| » | 4 |
Open |
Open |
Closed |
5 |
Closed |
Open |
Closed |
|
6 |
Open |
Closed |
Closed |
|
7 |
Closed |
Closed |
Closed |
|
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED 1 |
Unidentified |
On |
Data is being read from drive |
LED 1 |
Unidentified |
On (indefinitely) |
An error has occurred |
LED 1 |
Unidentified |
Blinking (slow) |
The disc may be dirty |
