TOSHIBA
SD-M1212
| Device Type | Internal DVD-ROM/CD-ROM |
| Interface | ATAPI |
| Spin Rate (Read) | 6x(DVD-ROM), 32X(CD-ROM) |
| Formats Supported Read | DVD-ROM, DVD Video, DVD-R, CD-ROM XA, CD-I Bridge, (Photo CD, Video CD), CD-I Ready, CD-DA, CD-G and multisession (Photo-CD), CD-Extra, CD-MIDI, CD-TEXT, CD-R/RW |

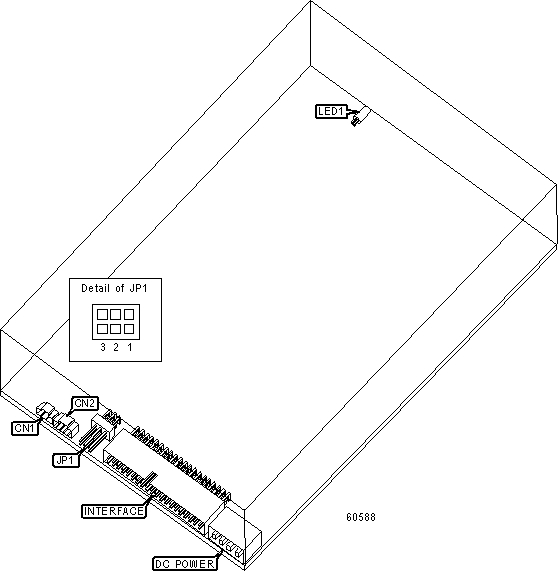

| View | Top |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Digital audio line out | CN1 |
Analog audio line out | CN2 |
ATAPI MASTER/SLAVE |
|||
Setting |
JP1/3 |
JP1/2 |
JP1/1 |
Single drive only |
Open |
Open |
Closed |
Master in two drive system |
Open |
Open |
Closed |
Slave in two drive system |
Open |
Closed |
Open |
Master/slave determined by cable select |
Closed |
Open |
Open |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED 1 |
Unidentified |
On |
Data is being read from drive |
LED 1 |
Unidentified |
On (indefinitely) |
An error has occurred |
LED 1 |
Unidentified |
Blinking (slow) |
The disc may be dirty |
