YAMAHA CORPORATION
CDR200TX
| Device Type | External CD-ROM |
| Interface | SCSI-2 |
| Spin Rate (Read/Write) | 6x/2x |
| Formats Supported Read | CD-ROM, CD-ROM XA, CD-I, CD-DA, CD-Bridge, CD-Extra, Video CD, CD-R |
| Formats Supported Write | CD-ROM, CD-ROM XA, CD-I, CD-DA, CD-Bridge, CD-Extra, Video CD, CD-R |
| View | Top |

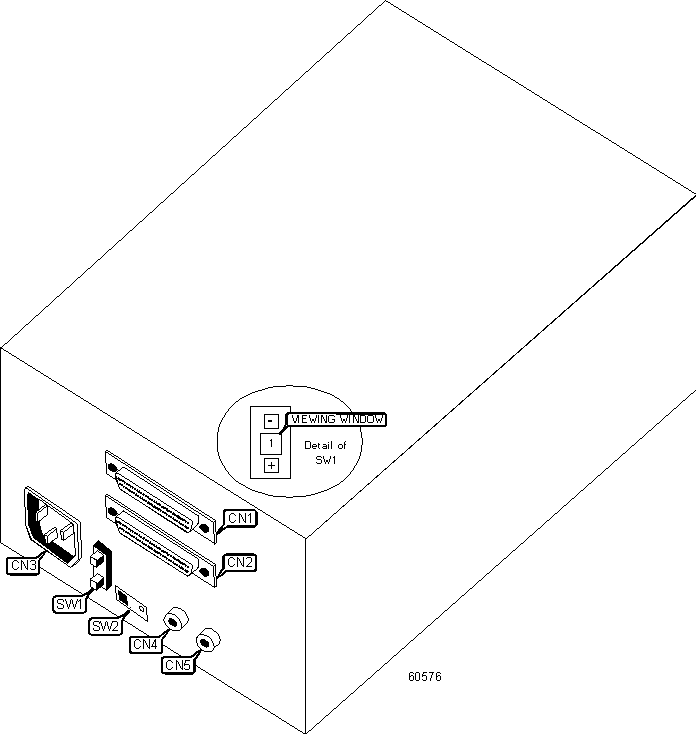

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| SCSI-2 connector | CN1 |
Audio out ( left ) | CN4 |
| SCSI-2 connector | CN2 |
Audio out ( right ) | CN5 |
| Power connector | CN3 |
||
DRIVE SELECT ID |
||
Drive ID |
SW1 |
|
0 |
0 |
|
| » | 1 | 1 |
2 |
2 |
|
3 |
3 |
|
4 |
4 |
|
5 |
5 |
|
6 |
6 |
|
7 |
7 |
|
| Note: Be sure to power off the drive before setting the SCSI ID number | ||
TERMINATION SETTINGS |
|
Setting |
SW2 |
Termination On |
On |
Termination Off |
Off |

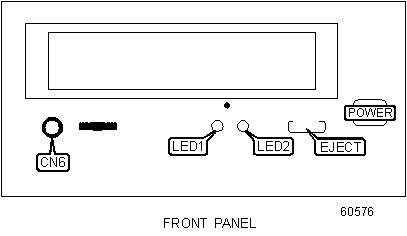

CONNECTIONS |
|
Function |
Label |
| Headphone jack | CN6 |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Orange |
On |
Ready (no disc) |
LED1 |
Orange |
Blinking |
Inserting disc |
LED1 |
Green |
Blinking |
Ejecting disc |
LED1 |
Green |
On |
Ready (disc inserted) |
LED1 |
Green |
On |
Seeking |
LED1 |
Green |
On |
Preparing to write |
LED1 |
Green |
On |
Writing |
LED1 |
Green |
On |
Writing (test mode) |
LED1 |
Green |
On |
Playback |
LED1 |
Orange |
Blinking |
Error occurred |
LED2 |
Green |
Blinking |
Seeking |
LED2 |
Orange |
Blinking |
Preparing to write |
LED2 |
Orange |
On |
Writing |
LED2 |
Orange |
Blinking |
Writing (test mode) |
LED2 |
Green |
On |
Playback |
