MITSUMI ELECTRONICS CORPORATION

CR-2801TE

Device Type Internal CD-R drive
Interface ATAPI
Spin Rate (Read/Write) 8x/2x
Formats Supported Read CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1), Photo-CD, Video CD, CD-Plus
Formats Supported Write CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1), Photo-CD, Video CD, CD-Plus

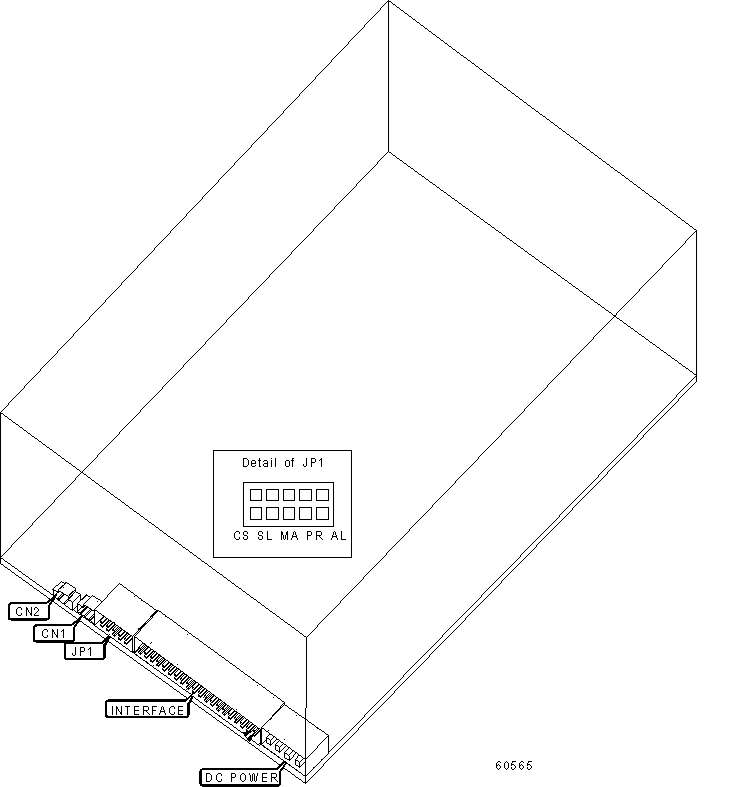

View Top



CONNECTIONS

Function

Label

Function

Label

Audio Connector CN1 Digital audio connector CN2


USER CONFIGURABLE SETTINGS

Function

Label

Position

» Factory configured - do not alter JP1/AL Unidentified
  Factory configured - do not alter JP1/PR Unidentified


ATAPI MASTER/SLAVE

Setting

JP1/CS

JP1/MA

JP1/SL

Master/Slave cable select

Closed Open Open

Master in two drive system

Open Closed Open

Slave in two drive system

Open Open Closed
