PANASONIC INDUSTRIAL COMPANY
KXL-807A
| Device Type | External CD-ROM drive |
| Interface | PCMCIA |
| Spin Rate | 20x |
| Formats Supported Read | CD-XA, CD-DA, CD-I, CD-ROM (Mode 1), CD-ROM (Mode 2), Photo-CD, Video CD, CD-E, Multi-session |
| View | Bottom |

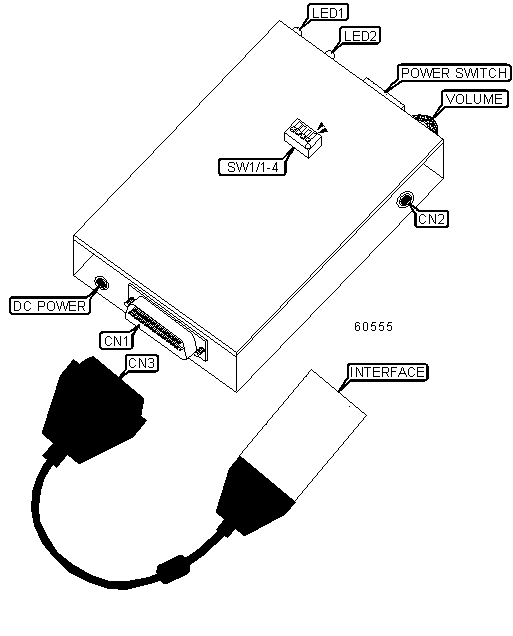

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Interface cable connector 1 | CN1 |
Interface cable connector 2 | CN3 |
| Line out | CN2 |
||
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Power select PCMCIA card slot or AC adapter | SW1/1 | Off |
| Power select AC adapter only | SW1/1 | On | |
| » | PC slot normal power mode selected (12x maximum) | SW1/2 | Off |
| PC slot power save mode selected (6x maximum) | SW1/2 | On | |
| » | Vibration detect mode enabled | SW1/3 | On |
| Vibration detect mode disabled | SW1/3 | Off | |
| » | Factory configured - do not alter | SW1/4 | Off |
| Note: AC adapter has
priority if PCMCIA card and AC adapter are connected, when SW1/1 is set to off. Note: Vibration detect mode is possible only when powered by an AC adapter. |
|||
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green |
On |
Drive has power |
LED1 |
Green |
Off |
Drive does not have power |
LED2 |
Amber |
On/blinking |
Data is being transferred |
LED2 |
Amber |
Off |
Data is not being transferred |
MISCELLANEOUS TECHNICAL NOTES |
| 20x spin rate is only possible
when using the AC adapter. CD should be removed before changing any mode settings. |
