IBM CORPORATION
40X-17X
| Device Type | Internal CD-ROM Drive |
| Interface | IDE |
| Spin Rate | 40x |
| Formats Supported Read | CD-XA, Photo CD, Multiple-session |
| View | Top |

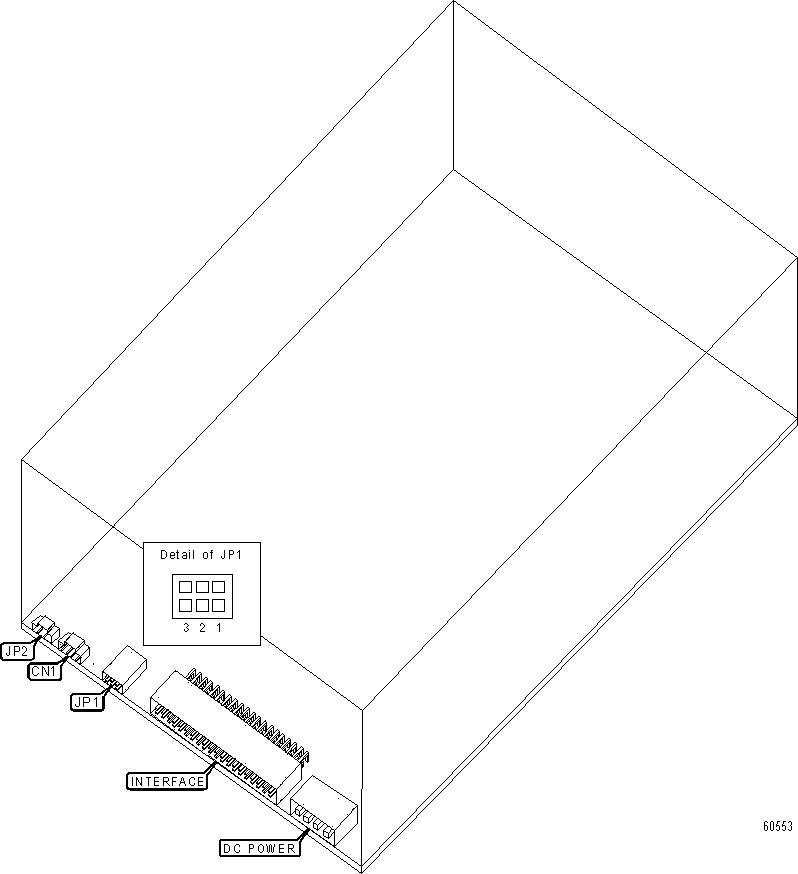

CONNECTIONS |
|
Function |
Label |
| Audio out connector | CN1 |
USER CONFIGURABLE SETTINGS |
||
Setting |
Label |
|
| » | Factory configured - do not alter | JP2 |
IDE MASTER/SLAVE |
||||
Setting |
JP1/1 | JP1/2 | JP1/3 | |
| » | Single drive only | Closed | Open | Open |
| Master in two drive system | Closed | Open | Open | |
| Slave in two drive system | Open | Closed | Open | |
| Master/slave determined by cable select | Open | Open | Closed | |
