ARTEC
CD-RW 4X4X24
| Device Type | Internal CD-ROM |
| Interface | ATAPI |
| Spin Rate (Read) | 24x |
| Spin Rate (Write/Rewrite) | 4x/4x |
| Formats Supported Read | CD-XA (Mode 1 & 2), CD-DA, CD-R, CD-I, CD-ROM (Mode 1 & 2), Photo-CD, Video CD, CD-Plus, CD-RW, Mixed mode, I-TRAX, UDF, Bootable |
| Formats Supported Write | CD-RW |
| View | Top |

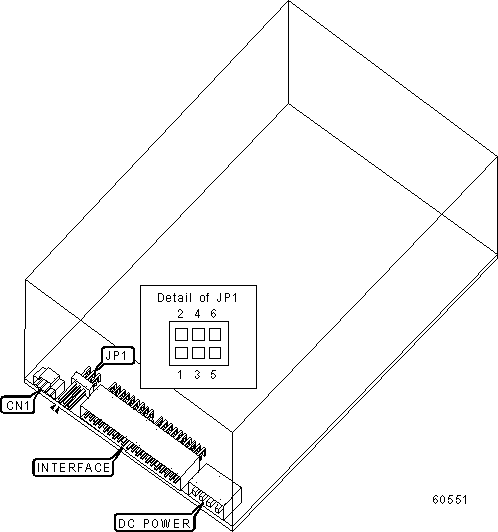

CONNECTIONS |
|
Function |
Label |
| Audio line out | CN1 |
ATAPI MASTER/SLAVE SELECTION |
|
Setting |
Position |
| Master/Slave determined by cable select | Pins 1 & 2 closed |
| Slave in two drive system | Pins 3 & 4 closed |
| Master in two drive system | Pins 5 & 6 closed |
