PIONEER ELECTRONICS, INC.
DR-706S
|
Device Type |
Internal CD-ROM |
|
Interface |
SCSI-2 |
|
Spin Rate (Read/Write) |
36x |
|
Formats Supported Read |
CD-XA, CD-DA, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus, CD-RW, CD-I |
|
View |

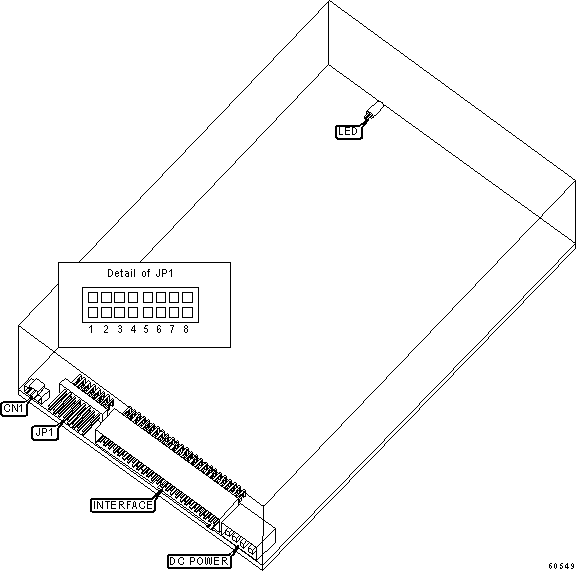

Top |
|
CONNECTIONS |
|
|
Function |
Label |
|
Audio out |
CN1 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Setting |
Label |
Position |
|
| » |
Factory configured - do not alter |
JP1/1 |
Open |
|
Eject button disabled |
JP1/2 |
Closed |
|
|
Eject button enabled |
JP1/2 |
Open |
|
|
Sector size set to 2048 bytes |
JP1/3 |
Open |
|
|
Sector size set to 512 bytes |
JP1/3 |
Closed |
|
|
Termination disabled |
JP1/4 |
Closed |
|
|
Termination enabled |
JP1/4 |
Open |
|
| » |
F actory configured - do not alter |
JP1/5 |
Open |
|
DRIVE SELECT ID |
|||
|
Drive ID |
JP1/6 |
JP1/7 |
JP1/8 |
|
0 |
Off |
Off |
Off |
|
1 |
Off |
Off |
On |
|
2 |
Off |
On |
Off |
|
3 |
Off |
On |
On |
|
4 |
On |
Off |
Off |
|
5 |
On |
Off |
On |
|
6 |
On |
On |
Off |
|
7 |
On |
On |
On |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED |
Unidentified |
Off |
Data is not being read |
|
LED |
Unidentified |
Blinking |
Data is being read |
|
Note: LED will flash in three-second intervals when the CD-ROM Auto Boot-Up feature of Windows 95 is enabled. |
|||
