PIONEER ELECTRONICS, INC.
DR-544
|
Device Type |
Internal CD-ROM |
|
Interface |
ATAPI |
|
Spin Rate (Read/Write) |
32x |
|
Formats Supported Read |
CD-XA, CD-DA, CD-RW, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus |
|

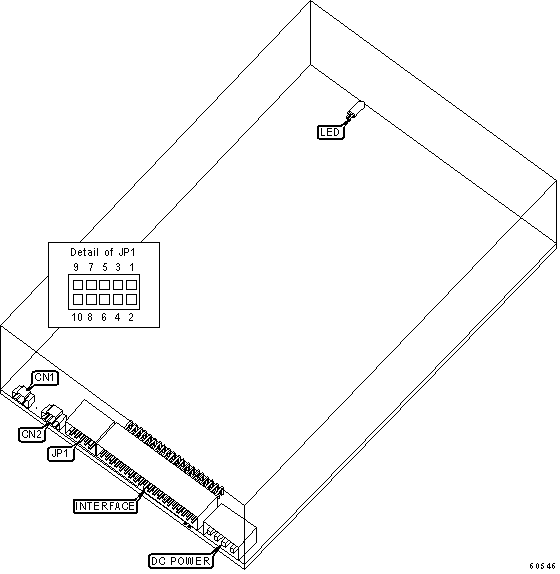

View |
Top |
|
CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Digital audio line out |
CN1 |
Audio output |
CN2 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Setting |
Label |
Position |
|
| » |
Factory configured - do not alter |
JP1 |
Pins 7 & 8 Open |
| » |
Factory configured - do not alter |
JP1 |
Pins 9 & 10 Open |
|
ATAPI MASTER/SLAVE |
|
|
Setting |
JP1 |
|
Single drive only |
Pins 1 & 2 closed |
|
Master in two drive system |
Pins 1 & 2 closed |
|
Slave in two drive system |
Pins 3 & 4 closed |
|
Master/slave determined by cable select |
Pins 5 & 6 closed |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED |
Unidentified |
Off |
Data is not being read |
|
LED |
Unidentified |
Blinking |
Data is being read |
|
Note: LED will flash in three second intervals when the CD-ROM Auto Boot-Up feature of Windows 95 is enabled. |
|||
