MEMOREX TELEX CORPORATION
CRW-2642
|
Device Type |
Internal CD-ROM |
|
Interface |
ATAPI |
|
Spin Rate (Read/Write) |
6x/4x |
|
Formats Supported Read |
CD-XA, CD-DA, CD-R, CD-RW, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus |
|
Formats Supported Write |
CD-XA, CD-DA, CD-R, CD-RW, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus |
|
View |
Top |
|

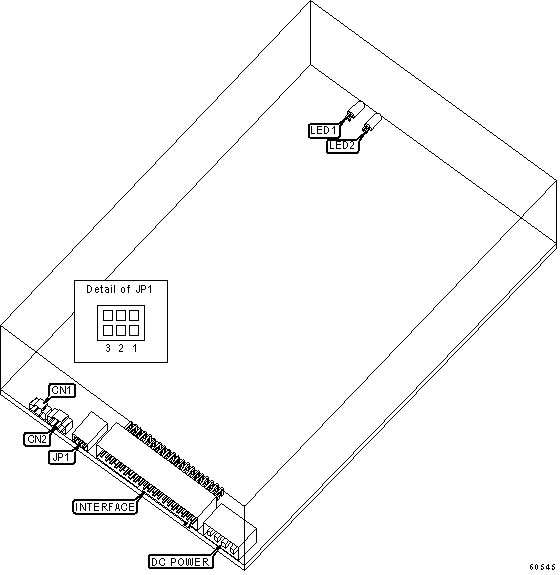

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Reserved |
CN1 |
Audio out |
CN2 |
|
ATAPI MASTER/SLAVE |
|||
|
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
|
Single drive only |
Closed |
Open |
Open |
|
Master in two drive system |
Closed |
Open |
Open |
|
Slave in two drive system |
Open |
Closed |
Open |
|
Master/slave determined by cable select |
Open |
Open |
Closed |
|
DIAGNOSTIC LED(S) |
||
|
LED1 |
LED2 |
Condition |
|
Off |
Off |
Drive has been reset |
|
Off |
On/Orange |
Drive ready, no disc in drive |
|
Off |
Blinking/Orange |
Disc being inserted/ejected |
|
Off |
On/Green |
Drive ready, disc in drive |
|
Blinking/Orange |
On/Green |
Drive is preparing to write data/writing in test mode |
|
On/Orange |
On/Green |
Data is being written to disc |
|
Blinking/Green |
On/Green |
Drive is seeking data |
|
On/Green |
On/Green |
Data is being read from disc |
