Device Type

Internal CD-ROM

Interface

SCSI-2 Fast

Spin Rate (Read)

20x

Formats Supported Read

DVD-RAM, DVD-ROM, PD, CD-DA, CD-R/RW, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Extra

Formats Supported Write

DVD-RAM, PD

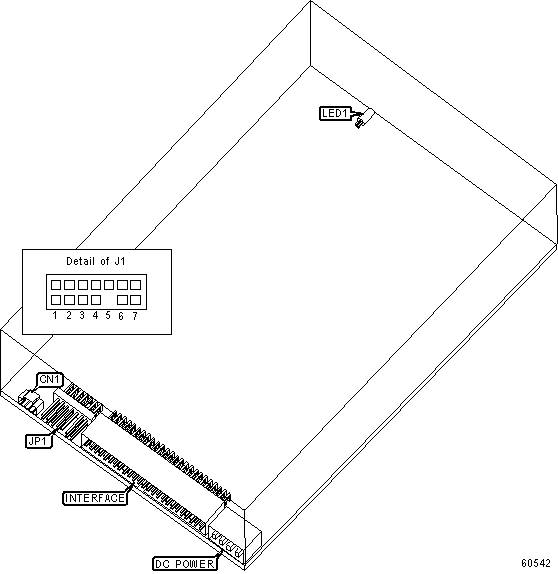

View

Top

CONNECTIONS

Function

Label

Audio output connector

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

» Factory configured - do not alter

JP1/1

Open

» Factory configured - do not alter

JP1/5

Open

» Termination enabled

JP1/6

Closed

Termination disabled

JP1/6

Open

» Factory configured - do not alter

JP1/7

Open

DRIVE SELECT ID

Drive ID

JP1/2

JP1/3

JP1/4

0

Open

Open

Open

1

Closed

Open

Open

2

Open

Closed

Open

3

Closed

Closed

Open

» 4

Open

Open

Closed

5

Closed

Open

Closed

6

Open

Closed

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

Off

No media inside drive

LED1

Green

Blinking

Error has occurred

LED1

Green

On

Media inside drive

LED1

Orange

On

Data is being read/written
