ACER, INC.
DVD 9632
| Device Type | Internal DVD-ROM |
| Interface | IDE |
| Spin Rate (Read) | 32x |
| Formats Supported Read | DVD-5, DVD-9, DVD-10, DVD-R, DVD-RW, CD-Audio, CD-ROM (Mode 1 & Mode 2), CD-XA, CD-I, CD-WO, CD-RW, Photo CD, Video CD, enhanced music CD |

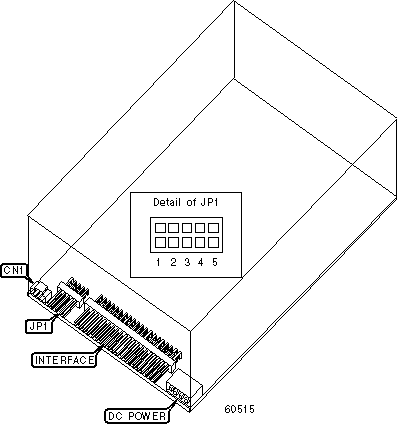

| View | Top |
CONNECTIONS |
|
Function |
Label |
| Audio line out | CN1 |
USER CONFIGURABLE SETTINGS |
|||
Setting |
Label |
Position |
|
| » | Factory configured - do not alter | JP1/4 |
Reserved |
| RPC phase I mode | JP1/5 |
Closed |
|
| RPC phase II mode | JP1/5 |
Open |
|
| Note: Never return to Phase I mode after Phase II mode is used. | |||
IDE MASTER/SLAVE SELECTION |
|||
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
| Master in two drive system | Closed |
Open |
Open |
| Slave in two drive system | Open |
Closed |
Open |
| Master/slave determined by cable select | Open |
Open |
Closed |
